THN3361J

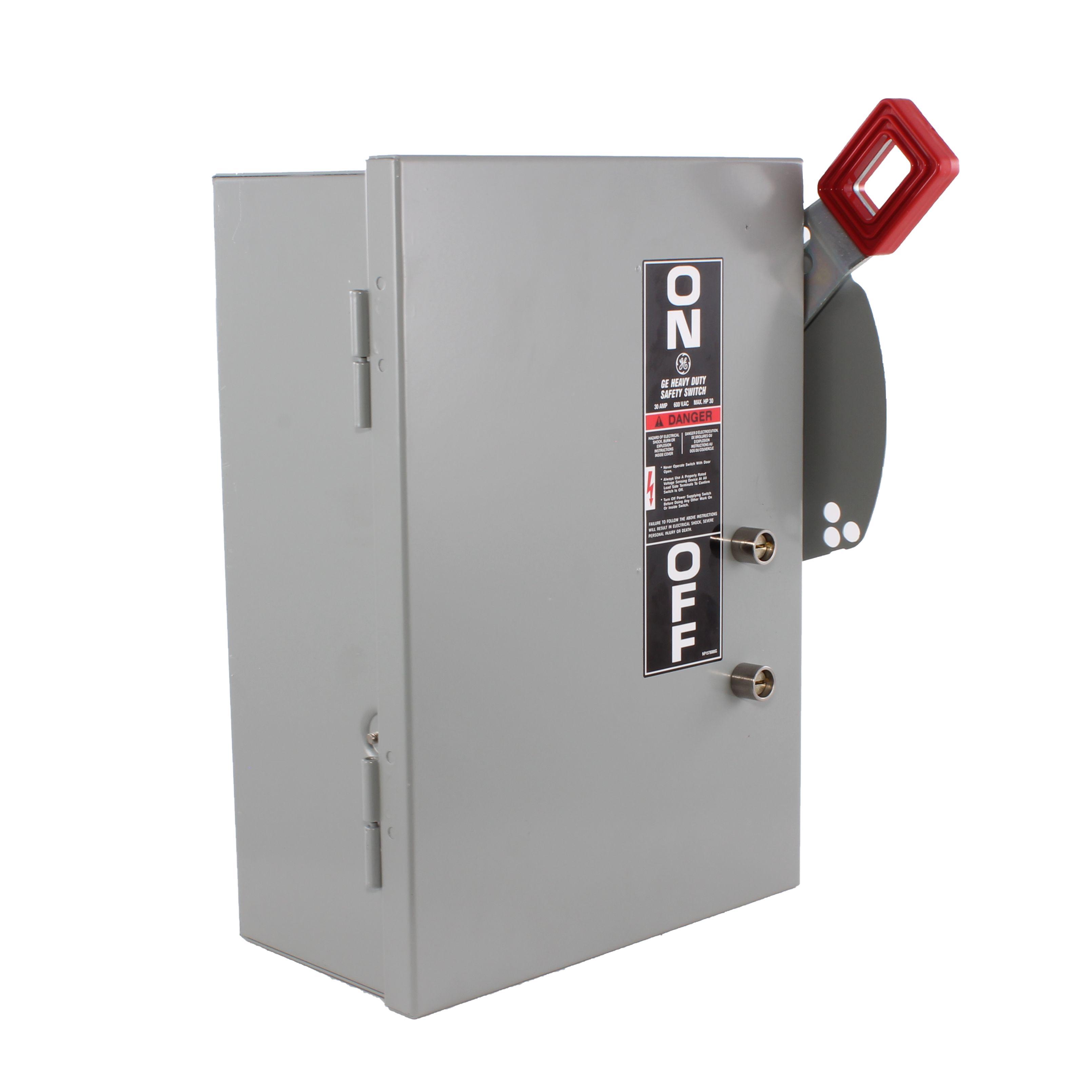

ABB THN3361J Ge Spec-Setter Safety Switch
Part Number # THN3361J
SKU # 2406829
$328.97 / Each
Typical price:$441.00 / Each
ABB THN3361J Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THN3361J |
| SKU #: | 2406829 |
| Actuator Type: | Handle |
| Amperage Rating: | 30 A |
| Dimensions: | 10.1 in W x 10 in D x 13.3 in H |
| Enclosure Type: | NEMA 5/12 |
| Finish: | Hot Dipped Galvanized/Powder Coated |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 30 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3, 3 ph |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 60 to 75 deg C |
| Terminal Type: | Line/Load Lug |
| Type: | Non-Fused Heavy Duty |
| Material: | Stainless Steel |
| Mounting type: | 3-Point/Self-Leveling |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164087130 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$328.97 / Each
Typical price:$441.00 / Each
Quantity:
- GE Spec-Setter Safety Switch, Non-Fused Heavy Duty, 600 V AC, 30 A, 30 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, Class H/J/K/R Insulation, NEMA 5/12 Enclosure, 3-Point/Self-Leveling Mounting, Line/Load Lug Terminal, 60 to 75 deg C, 10.1 in W x 10 in D x 13.3 in H Dimensions, Stainless Steel, Hot Dipped Galvanized/Powder Coated
THN3361J Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTHN3361J Item Features
- Highly visible ON/OFF label takes the guesswork out of safety and gives a clean, modern appearance
- Coin-proof, defeatable dual interlocks meet all safety inspection requirements
- Wide, unobstructed gutter and removable interior make wire pulling and lug connections quick and easy
- 3-point mounting pattern speeds installation and simplifies ganging in close quarters
- Clear line shield allows visual verification of blade position while guarding against accidental contact with live parts
- Plated blades provide visible confirmation of contact position
- Direct drive, quick-make, quick-break mechanism "snaps" the contacts open and closed, providing positive ON/OFF indication while prolonging switch life
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses
THN3361J Standards
cUL Listed|Federal Specification WS865C|GSA Compliant|NEMA KS1|Seismic Certified|UL ListedSKU #2406829Part Number #THN3361JUNSPSC39122205UPC00783164087130
