THN3362R

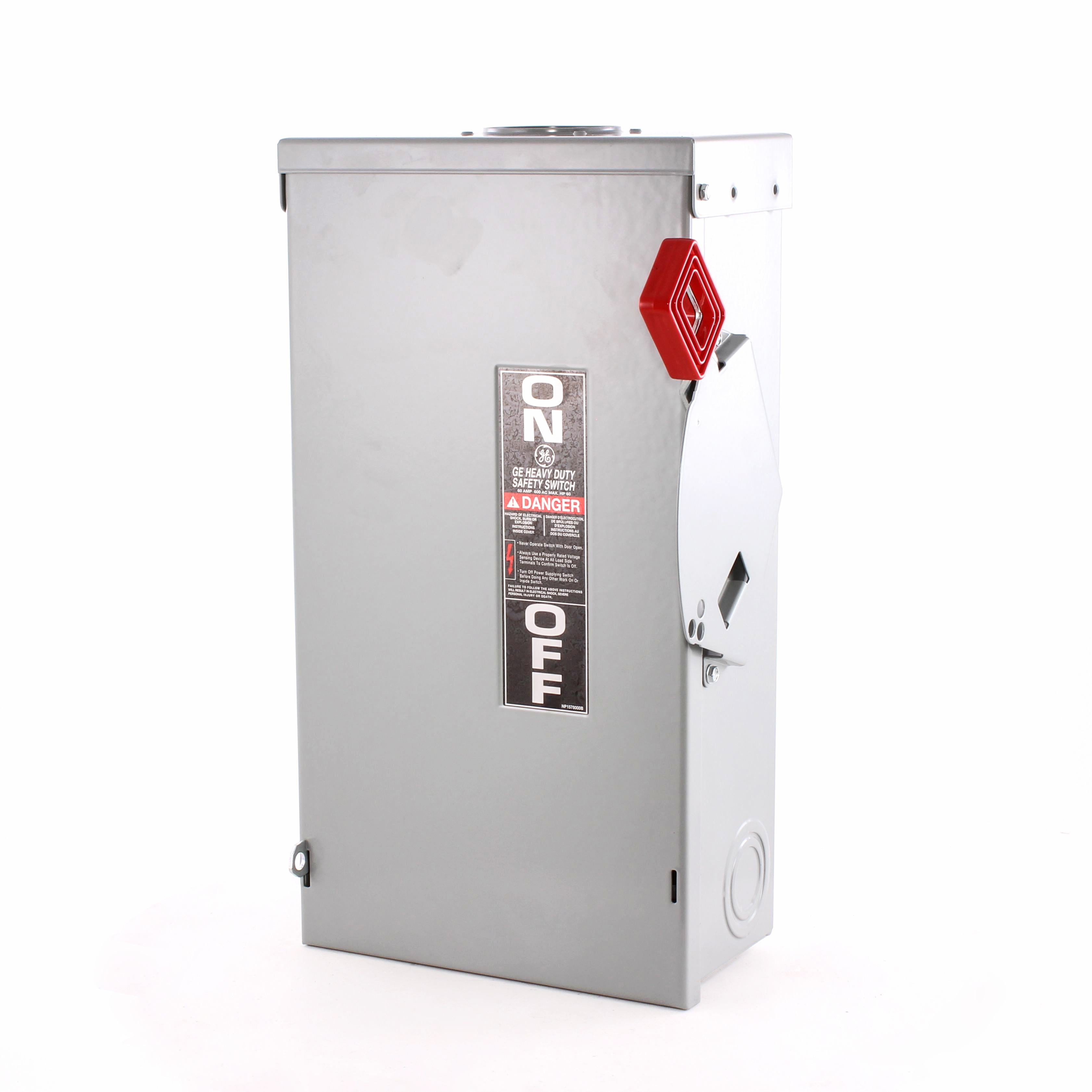

ABB THN3362R Ge Spec-Setter Safety Switch
Part Number # THN3362R
SKU # 2412321
$443.10 / Each
Typical price:$594.00 / Each
ABB THN3362R Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | THN3362R |
| SKU #: | 2412321 |
| Actuator Type: | Handle |
| Amperage Rating: | 60 A |
| Dimensions: | 9.2 in W x 17.2 in H x 4.8 in D |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60 Hz |
| Horsepower: | 60 hp |
| Number of Poles: | 3 |
| Number of Wires: | 3 |
| Phase: | 3 |
| Series: | THN |
| Short Circuit Current Rating (kA): | 200 kA |
| Temperature Rating (Degrees F): | 60/75 deg C |
| Type: | Heavy Duty Non-Fusible |
| Mounting type: | Surface |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122205 |
| UPC: | 00783164011319 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$443.10 / Each
Typical price:$594.00 / Each
Quantity:
- GE Spec-Setter Safety Switch, Heavy Duty Non-Fusible, Series: THN, 600 V AC, 60 A, 60 hp, 3 ph, 50/60 Hz Frequency, 3 Pole, 3 Wires, 200 kA Short Circuit, Handle Actuator, NEMA 3R Enclosure, Surface Mounting, 60/75 deg C, 9.2 in W x 17.2 in H x 4.8 in D Dimensions
THN3362R Application
Commercial, Industrial, Electrical Distribution and Control ApplicationsTHN3362R Item Features
- Donut handle ideal for hook stick operation and accepts 3 padlocks in the off position
- Direct drive, quick-make, quick-break mechanism "snaps" contacts open and closed providing positive on/off indication
- Self-leveling, 3-point mounting system
- Coin-proof, defeatable interlock
- Visible confirmation of plated blade contact positions
- Spring reinforced fuse clips assure reliable contact for cool operation
- Suitable for class H, K, J or R fuses, where applicable
- With class R fuses or J fuses, 30 to 600 A switches have UL listed short circuit rating of 200000 rms symmetrical A
- UL listed as service entrance equipment when installed in accordance with the national electric code
THN3362R Standards
UL 98|CSA C22.2 No. 4-04|Federal Specification W-S-865C|NEMA KS1 - 2013|Seismic CertifiedSKU #2412321Part Number #THN3362RUNSPSC39122205UPC00783164011319
