VB6-30-01-84

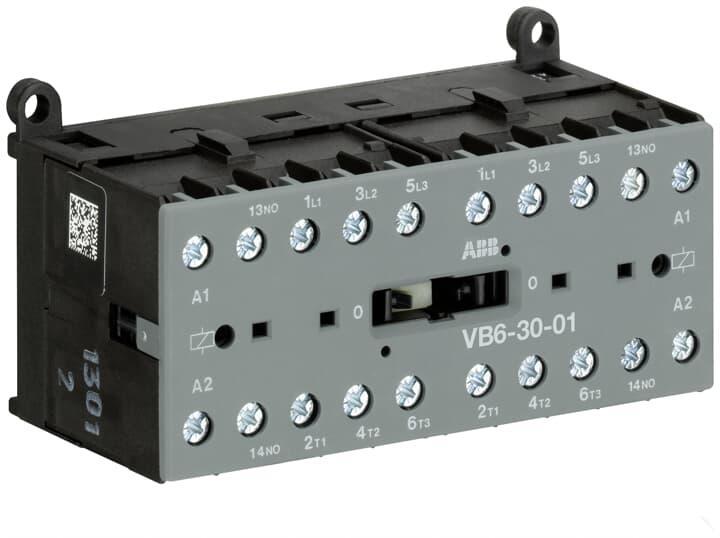

ABB VB6-30-01-84 Miniature Contactor
Part Number # VB6-30-01-84
SKU # 2288582
$113.73 / Each
Typical price:$135.93 / Each
ABB VB6-30-01-84 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VB6-30-01-84 |
| SKU #: | 2288582 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Coil Voltage: | 110 to 127, 110 to 127 V AC, 110 to 127 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 20 A at 380/440 V |
| Dimensions: | 96.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | VB6 |
| Size: | VB6 |
| Terminal Type: | Screw |
| Type: | Mechanically Interlocked |
| Wattage: | 4/2.2/3, 4/2.2/3 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614156519 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$113.73 / Each
Typical price:$135.93 / Each
Quantity:
- ABB Miniature Contactor, Mechanically Interlocked, Series: VB6, 110 to 127 V AC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 50/60 Hz Frequency, 4/2.2/3 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, VB6 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 96.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
VB6-30-01-84 Application
For compact solutions up to 5 hp, 5.5 kWVB6-30-01-84 Item Features
- Noiseless and hum-free coil
- Built-in mechanical interlock
- The coils must be mutually interlocked electrically and coils must be deenergised for 50 ms at least to prevent phase to phase short circuit on the arc
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 4 kW, 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
VB6-30-01-84 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2288582Part Number #VB6-30-01-84UNSPSC39121529UPC04013614156519
