Part Number # VB6-30-01-F01
SKU # 2289856
Image provided may only be a representation of
final product and may include optional equipment
VB6-30-01-F01

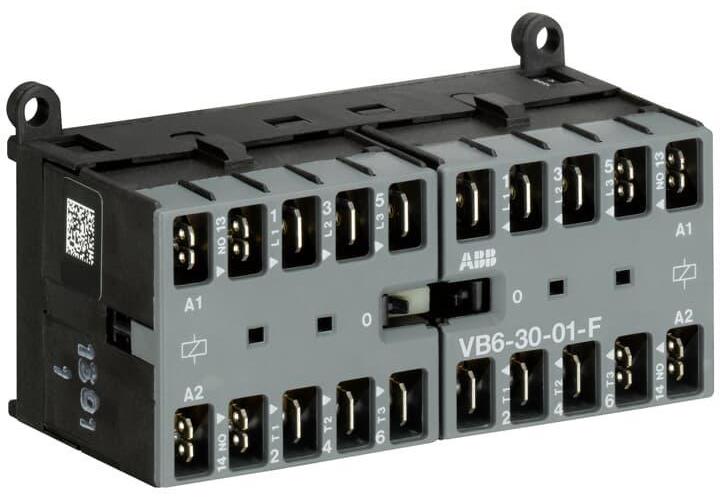

ABB VB6-30-01-F01 Miniature Contactor
Part Number # VB6-30-01-F01
SKU # 2289856
ABB VB6-30-01-F01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VB6-30-01-F01 |
| SKU #: | 2289856 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Coil Voltage: | 24, 24 V AC, 24 VAC |
| Contact Configuration: | 3NO |
| Dimensions: | 3.79 in W x 1.84 in D x 2.26 in H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | VB6 |
| Size: | VB6 |
| Terminal Type: | Flat Pin |
| Type: | Reversing |
| Wattage: | 4/2.2/3, 4/2.2/3 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614052484 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB VB6-30-01-F01 Miniature Contactor
Brand: ABB
Part Number: VB6-30-01-F01
ABB Miniature Contactor, Reversing, Series: VB6, 24 VAC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 50/60 Hz Frequency, 4/2.2/3 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, VB6 Size, Flat Pin Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 3.79 in W x 1.84 in D x 2.26 in H Dimensions
Additional Description: ABB -VB6-30-01-F01 3P MINI CONTR,24/40-450,1NC,FP 24V 40
Catalog Description: The VB6-30-01-F mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, flat pin connection and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the silent coil, a switch position indication and the integrated possibility for rail or wall mounting.
VB6-30-01-F01 Application
residential buldings, commercial buildings and industrial applicationsVB6-30-01-F01 Item Features
- Built-in mechanical interlock
- The coils must be mutually interlocked electrically and coils must be deenergised for 50 ms at least to prevent phase to phase short circuit on the arc
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 4 kW, 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
SKU #2289856Part Number #VB6-30-01-F01UNSPSC39121529UPC04013614052484
