VB7-30-01-02

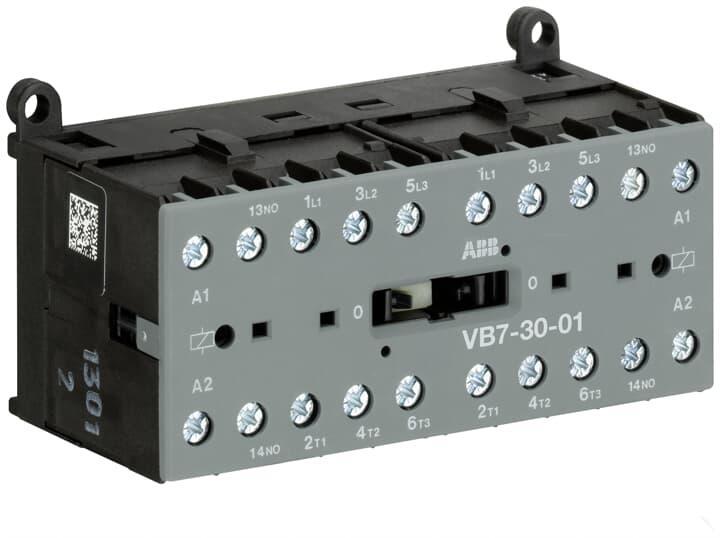

ABB VB7-30-01-02 Miniature Contactor
Part Number # VB7-30-01-02
SKU # 2217046
$156.39 / Each
Typical price:$186.90 / Each
ABB VB7-30-01-02 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VB7-30-01-02 |
| SKU #: | 2217046 |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Coil Voltage: | 42 V AC, 42 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 20 A at 380/440 V |
| Dimensions: | 96.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60 Hz |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Series: | VB7 |
| Size: | VB7 |
| Terminal Type: | Screw |
| Type: | Non-Reversing |
| Wattage: | 3/5.5 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614188305 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$156.39 / Each
Typical price:$186.90 / Each
Quantity:
- ABB Miniature Contactor, Non-Reversing, Series: VB7, 42 V AC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, VB7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 96.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
VB7-30-01-02 Application
For compact solutions up to 5 hp, 5.5 kWVB7-30-01-02 Item Features
- Noiseless and hum-free coil
- Built-in mechanical interlock
- The coils must be mutually interlocked electrically and coils must be deenergised for 50 ms at least to prevent phase to phase short circuit on the arc
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
VB7-30-01-02 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2217046Part Number #VB7-30-01-02UNSPSC39121529UPC04013614188305
