Part Number # VBC6-30-01-P01
SKU # 2399633
VBC6-30-01-P01

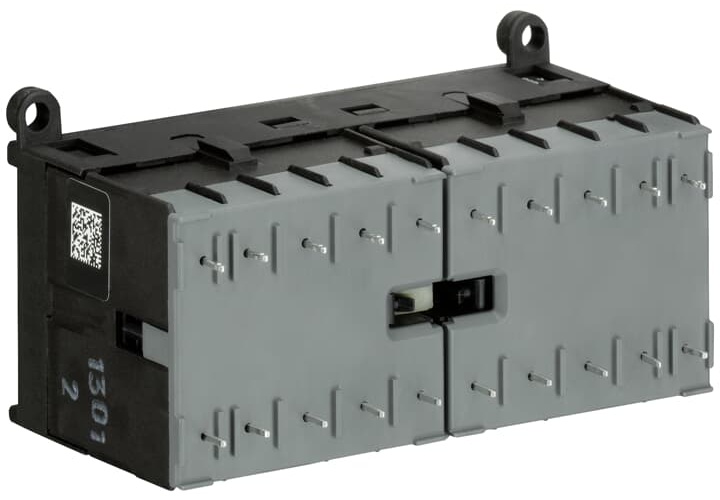

ABB VBC6-30-01-P01 Miniature Contactor
Part Number # VBC6-30-01-P01
SKU # 2399633
ABB VBC6-30-01-P01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VBC6-30-01-P01 |
| SKU #: | 2399633 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 3.79 in W x 1.84 in D x 2.26 in H |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NC |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Series: | VBC6 |
| Size: | VBC6 |
| Terminal Type: | Soldering Pin |
| Type: | Mechanically Interlocked |
| Wattage: | 4/2.2/3 kW |
| Country of origin: | DE |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614053795 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB VBC6-30-01-P01 Miniature Contactor
Brand: ABB
Part Number: VBC6-30-01-P01
ABB Miniature Contactor, Mechanically Interlocked, Series: VBC6, 24 VDC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 4/2.2/3 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, VBC6 Size, Soldering Pin Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, 3.79 in W x 1.84 in D x 2.26 in H Dimensions
Additional Description: ABB -VBC6-30-01-P01 VBC6-30-01-P-01 MINI REV.CONTACTOR 24VDC
Catalog Description: The VBC6-30-01-P mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, soldering pins and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the noiseless and hum-free coil, a switch position indication and the integrated possibility for rail mounting.
VBC6-30-01-P01 Application
For compact solutions up to 5 hp, 5.5 kWVBC6-30-01-P01 Item Features
- Noiseless and hum-free coil
- Built-in mechanical interlock and safety blocking function
- The safety blocking function is triggered if the voltage is applied to the coil of the contactor to be switched on before the contactor to be switched off has dropped out
- The contactor coils are designed for continuous operation when the contactor is de-energized i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor with the coil voltage applied
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 4 kW, 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
VBC6-30-01-P01 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2399633Part Number #VBC6-30-01-P01UNSPSC39121529UPC04013614053795
Image provided may only be a representation of final product and may include optional equipment
