VBC6-30-10-01

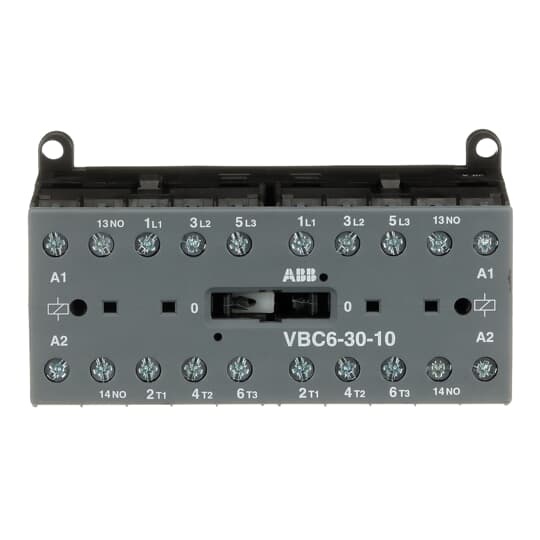

ABB VBC6-30-10-01 IEC Contactor
Part Number # VBC6-30-10-01
SKU # 2378144
$574.20 / 5Each
Typical price:$686.25 / Each
ABB VBC6-30-10-01 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VBC6-30-10-01 |
| SKU #: | 2378144 |
| Coil Power Rating: | 4 kW, 3 hp |
| Coil Voltage: | 24 V DC, 24 VDC |
| Contact Configuration: | 3NO |
| Dimensions: | 2.26 in H x 3.79 in W x 1.84 in D |
| Enclosure Type: | IP20 |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10^7 Cycles |
| Operating Temperature: | -25 to 55 deg C |
| Terminal Type: | Screw |
| Type: | Compact DC Operated Miniature Reversing |
| Connection type: | Cable Clamp |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614053696 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$574.20 / 5Each
Typical price:$686.25 / Each
Quantity:
- ABB IEC Contactor, Compact DC Operated Miniature Reversing, 24 V DC Coil, 6.8 A Maximum Load Current, 4 kW, 3 hp Coil, 3 Pole, 3NO Contact Configuration, 1NO Auxiliary Contacts, Cable Clamp Connection, Screw Terminal, IP20 Enclosure, 10^7 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 2.26 in H x 3.79 in W x 1.84 in D Dimensions
VBC6-30-10-01 Application
For switching resistive or motor loads up to 690 VACVBC6-30-10-01 Item Features
- Built-in mechanical interlock
- The coils must be mutually interlocked electrically and coils must be de-energized for 50 ms at least to prevent phase to phase short circuit on the arc
- Control circuit: DC operated, low coil consumption (3.5 W at pull-in and at holding)
- Hum-free coil
- 4 kW at 3-phase 400 VAC, 3 hp at 440 to 480 VAC UL/CSA
- 6.8 A at 220 to 240 VAC 3-phase UL/CSA
VBC6-30-10-01 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2378144Part Number #VBC6-30-10-01UNSPSC39121529UPC04013614053696
