Part Number # VBC6-30-10-04
SKU # 2344737
VBC6-30-10-04
ABB VBC6-30-10-04 Miniature Contactor
Part Number # VBC6-30-10-04
SKU # 2344737
ABB VBC6-30-10-04 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VBC6-30-10-04 |
| SKU #: | 2344737 |
| Coil Power Rating: | 1 hp, 1/2 hp, 2 hp, 3 hp |
| Coil Voltage: | 110 to 125, 110 to 125 V AC, 110 to 125 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 20 A at 380/440 V |
| Dimensions: | 96.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | VBC6 |
| Size: | VBC6 |
| Terminal Type: | Screw |
| Type: | Reversing |
| Wattage: | 4/2.2/3, 4/2.2/3 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614129988 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ABB VBC6-30-10-04 Miniature Contactor
Brand: ABB
Part Number: VBC6-30-10-04
ABB Miniature Contactor, Reversing, Series: VBC6, 110 to 125 VAC Coil, 12 A Maximum Load Current, 1 hp, 1/2 hp, 2 hp, 3 hp Coil, 3 Pole, 50/60 Hz Frequency, 4/2.2/3 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20 A at 380/440 V Contact, VBC6 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 96.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
Additional Description: ABB -VBC6-30-10-04 VBC6-30-10 MINI REV.CONT. 110-125VDC
Catalog Description: The VBC6-30-10 mini reversing contactor is a compact 3 pole contactor with 1 auxiliary contact, screw terminals and normal mechanical interlock. They are ideally suited for applications where reliability is a must and space is at a premium. Mini reversing contactors are used in residential buldings, commercial buildings and industrial applications for the control of three-phase motor loads up to 4 kW (AC-3). Further features are the noiseless and hum-free coil, a a switch position indication and the integrated possibility for rail or wall mounting.
VBC6-30-10-04 Application
residential buldings, commercial buildings and industrial applicationsVBC6-30-10-04 Item Features
- Built-in mechanical interlock and safety blocking function
- The safety blocking function is triggered if the voltage is applied to the coil of the contactor to be switched on before the contactor to be switched off has dropped out
- The contactor coils are designed for continuous operation when the contactor is de-energized i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor with the coil voltage applied
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 1 hp at 208 VAC 3 ph, 0.5 hp at 220 to 240 VAC 1 ph, 2 hp at 220 to 240 VAC 3 ph, 3 hp at 440 to 480 VAC 3 ph, 1 hp at 550 to 600 VAC 3 ph
- 4 kW, 2.2 kW at 220/230/240 V, 4 kW at 400 V, 4 kW at 440 V, 4 kW at 500 V, 3 kW at 690 V
VBC6-30-10-04 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2344737Part Number #VBC6-30-10-04UNSPSC39121529UPC04013614129988

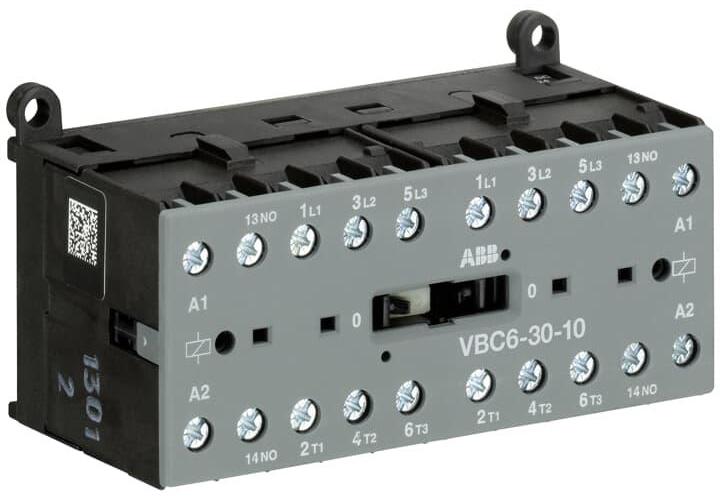

Image provided may only be a representation of final product and may include optional equipment
