Part Number # VBC7-30-01-04
SKU # 2333052
VBC7-30-01-04
ABB VBC7-30-01-04 Miniature Contactor
Part Number # VBC7-30-01-04
SKU # 2333052
$188.01 / Each
Typical price:$203.90 / Each
ABB VBC7-30-01-04 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VBC7-30-01-04 |
| SKU #: | 2333052 |
| Coil Voltage: | 110 to 125 V AC |
| Series: | VBC7 |
| Size: | VBC7 |
| UNSPSC: | 39121529 |
| UPC: | 04013614191602 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$188.01 / Each
Typical price:$203.90 / Each
Quantity:
- ABB Miniature Contactor, Reversing, Series: VBC7, 110 to 125 V AC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NC Auxiliary Contacts, 20 A at 380/440 V Contact, VBC7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 96.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
VBC7-30-01-04 Application
residential buldings, commercial buildings and industrial applicationsVBC7-30-01-04 Item Features
- Built-in mechanical interlock and safety blocking function
- The safety blocking function is triggered if the voltage is applied to the coil of the contactor to be switched on before the contactor to be switched off has dropped out
- The contactor coils are designed for continuous operation when the contactor is de-energized i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor with the coil voltage applied
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 11.5 A at 380/400 V rated operational current AC-3
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
VBC7-30-01-04 Standards
BAA Compliant|BV Certified|CB Certified|CCC Certified|LR Certified|RMRS CertifiedSKU #2333052Part Number #VBC7-30-01-04UNSPSC39121529UPC04013614191602

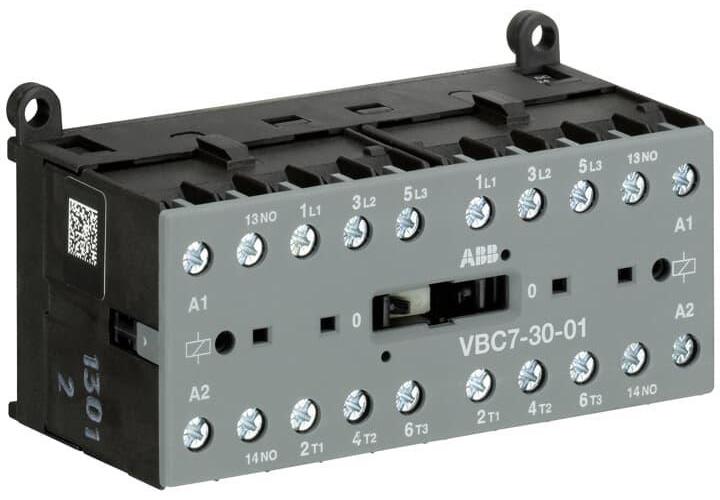

Image provided may only be a representation of final product and may include optional equipment
