Brand: ABB
VBC7-30-10-04

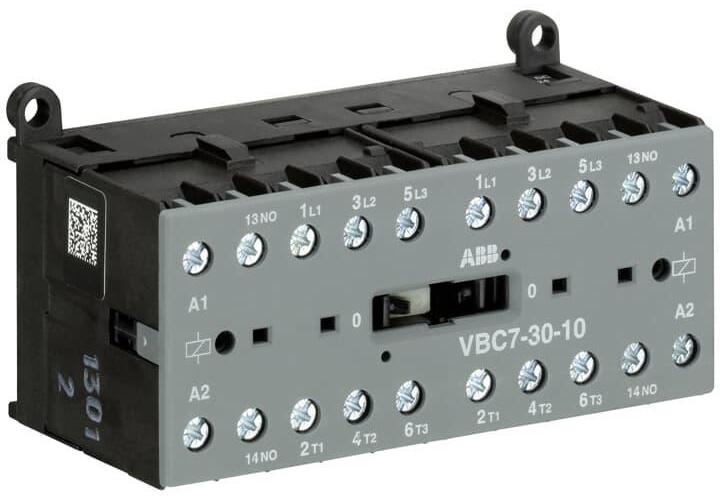

ABB VBC7-30-10-04 Miniature Contactor
Part Number # VBC7-30-10-04
SKU # 2333051
$170.61 / Each
Typical price:$203.90 / Each
ABB VBC7-30-10-04 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | VBC7-30-10-04 |
| SKU #: | 2333051 |
| Coil Power Rating: | 3 hp, 1-1/2 hp, 5 hp |
| Coil Voltage: | 110 to 125, 110 to 125 VAC |
| Contact Configuration: | 3NO |
| Contact Rating: | 20 A at 380/440 V |
| Dimensions: | 96.5 mm W x 46.5 mm D x 57.5 mm H |
| Enclosure Type: | IP20 |
| Frequency Rating: | 50/60, 50/60 Hz |
| Number of Auxiliary Contacts: | 1NO |
| Number of Poles: | 3 |
| Operating Cycles: | 10000000, 10000000 Cycles |
| Operating Temperature: | -25 to 55, -25 to 55 deg C |
| Series: | VBC7 |
| Size: | VBC7 |
| Terminal Type: | Screw |
| Type: | Reversing |
| Wattage: | 3/5.5, 3/5.5 kW |
| Country of origin: | DE |
| Mounting type: | Rail/Wall |
| Manufacturer Name: | ABB |
| UNSPSC: | 39121529 |
| UPC: | 04013614157561 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$170.61 / Each
Typical price:$203.90 / Each
Quantity:
- ABB Miniature Contactor, Reversing, Series: VBC7, 110 to 125 VAC Coil, 16 A Maximum Load Current, 3 hp, 1-1/2 hp, 5 hp Coil, 3 Pole, 50/60 Hz Frequency, 3/5.5 kW Wattage, 3NO Contact Configuration, 1NO Auxiliary Contacts, 20 A at 380/440 V Contact, VBC7 Size, Screw Terminal, IP20 Enclosure, 10000000 Cycles Operating Cycles, -25 to 55 deg C Operating, Rail/Wall Mounting, 96.5 mm W x 46.5 mm D x 57.5 mm H Dimensions
VBC7-30-10-04 Application
residential buldings, commercial buildings and industrial applicationsVBC7-30-10-04 Item Features
- Built-in mechanical interlock and safety blocking function
- The safety blocking function is triggered if the voltage is applied to the coil of the contactor to be switched on before the contactor to be switched off has dropped out
- The contactor coils are designed for continuous operation when the contactor is de-energized i.e. the coil is not damaged if the mechanical interlock prevents switch-on of the contactor with the coil voltage applied
- Control circuit - AC operated
- Low coil consumption (3.5 VA at pull-in and at holding)
- Hum-free coil
- Add-on auxiliary contact blocks for front mounting
- 20 A at 220/240 V, 16 A at 220/240 V, 20 A at 380/440 V, 16 A at 380/440 V, 6 A at 690 V, 6 A at 690 V rated operational current AC-1
- 11.5 A at 380/400 V rated operational current AC-3
- 3 hp at 208 VAC 3 ph, 1.5 hp at 220 to 240 VAC 1 ph, 3 hp at 220 to 240 VAC 3 ph, 5 hp at 440 to 480 VAC 3 ph, 5 hp at 550 to 600 VAC 3 ph
- 3 kW at 220/230/240 V, 5.5 kW at 400 V, 5.5 kW at 440 V, 5.5 kW at 500 V, 3 kW at 690 V
VBC7-30-10-04 Standards
RoHs, CSA, cUL, CE, GOSTSKU #2333051Part Number #VBC7-30-10-04UNSPSC39121529UPC04013614157561
