Brand: ABB

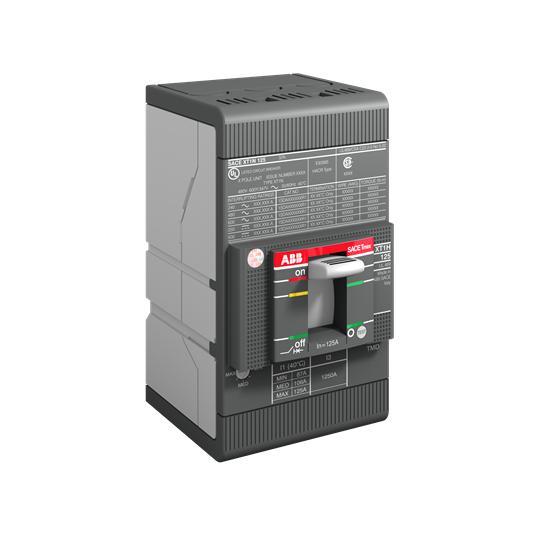

ABB XT1NU3070AFF000XXX Molded Case Circuit Breaker
Part Number # XT1NU3070AFF000XXX
SKU # 2326168
$327.67 / Each
ABB XT1NU3070AFF000XXX Key Features
Brand: ABB
Part Number # XT1NU3070AFF000XXX
SKU #2326168
Amperage Rating: 70, 70 A
Dimensions: 5.12 in H x 3 in W x 2.75 in D
Frame: XT1 125 A, XT1 125A
Frequency Rating: 50/60, 50/60 Hz
Insulation Type: Double Insulated
Interrupt Rating: 18, 18 kA
Number of Poles: 3
Series: Tmax XT
Temperature Rating (Degrees F): -13 to 158, -13 to 158 deg F
Trip Range: 70 to 700, 70 to 700 A
Trip Type: Fixed Thermal/Fixed Magnetic
Type: Low Voltage
Voltage Rating: 600Y/347/690, 600Y/347/690 VAC
Connection type: Front Line/Load Side
Country of origin: IT
Manufacturer Name: ABB
UNSPSC: 39121616
UPC: 08015644786205
$327.67 / Each
ABB XT1NU3070AFF000XXX Molded Case Circuit Breaker
Brand: ABB
Part Number: XT1NU3070AFF000XXX
ABB Molded Case Circuit Breaker, Low Voltage, Series: Tmax XT, 600Y/347/690 VAC, 70 A, 50/60 Hz Frequency, 18 kA Interrupt, XT1 125A Frame, Fixed Thermal/Fixed Magnetic Trip, 70 to 700 A Trip, 3 Pole, Front Line/Load Side Connection, Double Insulated Insulation, -13 to 158 deg F, 5.12 in H x 3 in W x 2.75 in D Dimensions
Additional Description: ABB -XT1NU3070AFF000XXX XT1N 125 TMF 70-700 3P F F UL/CSA
Catalog Description: XT1N 125 TMF 70-700 3p F F UL/CSA
XT1NU3070AFF000XXX Application
For all distribution levels from the main low voltage switchboard to the sub-switchboards in the installationXT1NU3070AFF000XXX Item Features
- Specific electronic trip units for energy metering, motor protection and generator protection in addition to a Modbus communication module for integration in a supervision system
- F front terminals, no lugs installed on line and load side termination (top/bottom)
- Wide range of keylocks and padlocking options, plug-in and withdrawable versions to speed up maintenance operations and improved diagnostic to have ready to use information about breakers status
- A dedicated range of accessories and a renewed solution for electronic trip units to adapt Tmax XT to different applications scenarios installation flexibility
- XTraordinary limiting characteristics allow savings in copper and footprint in switchboard, high selectivity values and very compact motor protection solutions high breaking capacity
- 18 kA normal breaking capacity
- Frame XT1 to 125A, 600Y/347 V (UL)/160 A, 690 V (IEC) thermal magnetic protection
- Feature high specific let-through current peak and energy limiting characteristics that allow the circuits and equipment on the load side to be sized in optimum way
XT1NU3070AFF000XXX Standards
UL Listed|CSA Certified|IEC CertifiedSKU #2326168Part Number #XT1NU3070AFF000XXXUNSPSC39121616UPC08015644786205
