ZEB2K3

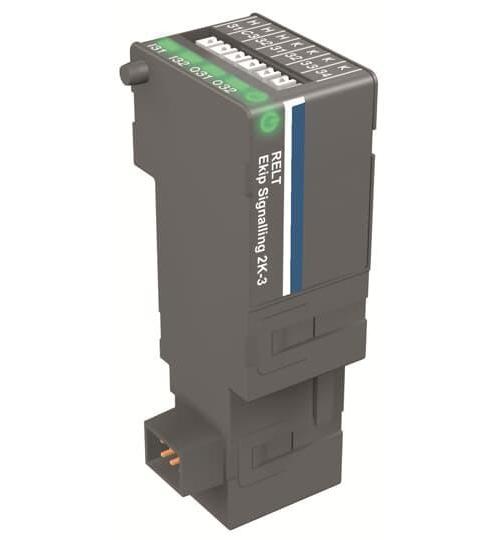

ABB ZEB2K3 Type 2K-3 Signaling Module
Part Number # ZEB2K3
SKU # 2422255
$814.00 / Each
Typical price:$2168.50 / Each
ABB ZEB2K3 Key Features
| Brand: | ABB |
|---|---|
| Part Number # : | ZEB2K3 |
| SKU #: | 2422255 |
| Dimensions: | 200 mm W x 200 mm D x 50 mm H |
| Specifications: | 150 V DC/250 V AC Switching Voltage, 2 A at 30 V DC/0.8 A at 50 V DC/0.2 A at 150 V DC/4 A at 250 V AC Switching Current, 1000 Vrms Contact/Coil Insulation, 2 Input + 2 Output Contacts, 150 VDC/250 VAC Switching Voltage, 2 A at 30 VDC/0.8 A at 50 VDC/0.2 A at 150 VDC/4 A at 250 VAC Switching Current, 1000 Vrms Contact/Coil Insulation, 2 Input + 2 Output Contacts |
| Suitable For Use With: | SACE Emax2 Series Size E1.2 to E6.2 Low Voltage Power Circuit Breakers, SACE Tmax Size XT2/XT4/XT5/XT7-XT7M Low Voltage Molded Case Circuit Breakers and Ekip Trip Units |
| Type: | Type 2K-3 |
| Country of origin: | IT |
| Manufacturer Name: | ABB |
| UNSPSC: | 39122221 |
| UPC: | 08015644781026 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$814.00 / Each
Typical price:$2168.50 / Each
Quantity:
- ABB, ZEB2K3, Signaling Module, Type 2K-3, For Use With: SACE Emax2 Series Size E1.2 to E6.2 Low Voltage Power Circuit Breakers, SACE Tmax Size XT2/XT4/XT5/XT7-XT7M Low Voltage Molded Case Circuit Breakers and Ekip Trip Units, Specifications: 150 V DC/250 V AC Switching Voltage, 2 A at 30 V DC/0.8 A at 50 V DC/0.2 A at 150 V DC/4 A at 250 V AC Switching Current, 1000 Vrms Contact/Coil Insulation, 2 Input + 2 Output Contacts, 200 mm W x 200 mm D x 50 mm H Dimensions
ZEB2K3 Standards
CE Certified|IEC Certified|WEEE ListedSKU #2422255Part Number #ZEB2K3UNSPSC39122221UPC08015644781026
