Part Number # 71A5390001D
SKU # 361425
71A5390001D
Advance Lighting 71A5390001D High Intensity Discharge Hid Ballast
Part Number # 71A5390001D
SKU # 361425
Advance Lighting 71A5390001D Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | 71A5390001D |
| SKU #: | 361425 |
| Amperage Rating: | 1.15/0.66/0.58/0.5, 1.15/0.66/0.58/0.5 A |
| Dimensions: | 3.9 in L x 2.8 in W x 3.07 in D, 4 in L x 3.07 in W x 2.9 in H |
| Dimmable: | No |
| Lamp Base Type: | 71A5390 |
| Lamp Type: | HID Metal Halide |
| Minimum Starting Temperature: | -20, -20 deg F |
| Start Type: | Pulse |
| Type: | Magnetic HID |
| Wattage: | 129, 129 W |
| Temperature range: | -20 deg F |
| UNSPSC: | 39101902 |
| UPC: | 00781087017838 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Advance Lighting 71A5390001D High Intensity Discharge Hid Ballast
Brand: Advance Lighting
Part Number: 71A5390001D
Signify Luminaires Core and Coil Quad Ballast Kit, Magnetic HID, HID Metal Halide Lamp, 100 W Lamp, 129 W Wattage, 120/208/240/277 VAC, 1.15/0.66/0.58/0.5 A, 60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Ballast Factor: 1, -20 deg F, 3.9 in L x 2.8 in W x 3.07 in D Dimensions
Additional Description: ADVT-71A5390001D 71A5390001D MH BAL 100W M90/140 QUAD KIT BALLAST KIT 192922
Catalog Description: Reliable performance;Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise, and dissipate heat;Pre-insulated voltage leads reduce the risk of shock and shrink installation time;The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.;Vacuum-pressure impregnated with a silica-filled polyester varnish;All core and coil ballasts below 600W utilize a UL Class H (180ºC) insulation system;C and C ballasts 600W and higher utilize a UL Class N (200ºC) insulation system;Pre-insulated voltage leads;Ballast kits supplied with pre-wired ignitor;High bay retail, manufacturing, gymnasiums, warehouses, parking structures, outdoor
71A5390001D Specifications
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 12 Mfd capacitor
- 2.5/1.5/1.3/1.12 A input current (open circuit), 1.24/0.54/0.45/0.4 A input current (starting), 0.63 to 0.95/0.43 to 0.65/0.37 to 0.55/0.29 to 0.44 A input current (short circuit), 1.15/0.66/0.58/0.5 A input current (nominal)
- 3 x 4 in (2 LW) core
- 1.65 in Dia x 2.75 in H oval capacitor
- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
71A5390001D Application
Lighting Luminaire Component, Outdoor71A5390001D Standards
ANSI M90/140|CSA Certified|RoHS Compliant|UL ListedSKU #361425Part Number #71A5390001DUNSPSC39101902UPC00781087017838

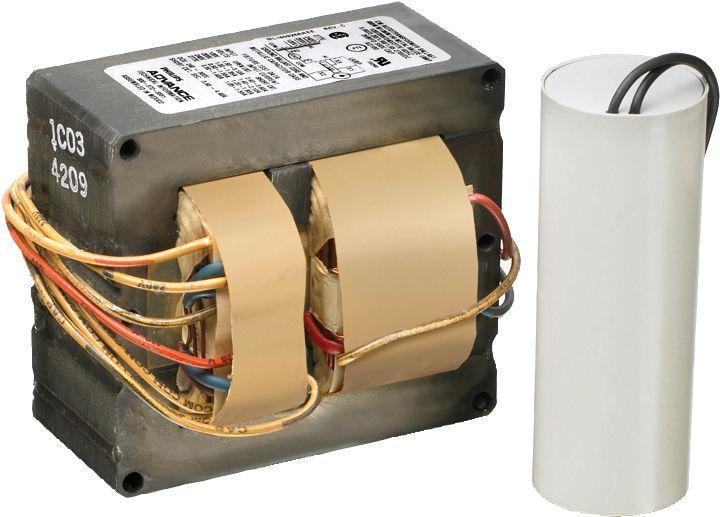

Image provided may only be a representation of final product and may include optional equipment
