Advance Lighting 71A5792001D HID Ballast
Part Number # 71A5792001D
SKU # 2228927

71A5792001D
Advance Lighting 71A5792001D HID Ballast
Part Number # 71A5792001D
SKU # 2228927
$235.66 / Each
Typical price:$329.93 / Each
Advance Lighting 71A5792001D Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | 71A5792001D |
| SKU #: | 2228927 |
| Amperage Rating: | 2.5/1.45/1.25/1.1 A |
| Dimensions: | 4.75 in L x 3.1 in W x 4.25 in H |
| Lamp Base Type: | 71A5792A |
| Wattage: | 291 W |
| UNSPSC: | 39101902 |
| UPC: | 00781087120804 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$235.66 / Each
Typical price:$329.93 / Each
Quantity:
- Advance, 71A5792001D, HID Ballast, Magnetic, HID Lamp, 250 W Lamp, 291 W Wattage, 120/208/240/277 V AC, 2.5/1.45/1.25/1.1 A, 60 Hz Frequency, -30 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamps, Thermal Protection: Class P, 71A5792A Lamp Base, Ballast Factor: 1, ANSI M138/M153 Ballast Grade, 4.75 in L x 3.1 in W x 4.25 in H Dimensions
71A5792001D Application
Lighting Luminaire Component and Outdoor Applications71A5792001D Item Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 17 Mfd capacitor
- 1.4/0.8/0.7/0.65 A input current (open circuit), 1.9/1.1/0.96/0.85 A input current (starting), 1.58 to 2.4/0.9 to 1.35/0.8 to 1.2/0.68 to 1.05 A input current (short circuit), 2.5/1.45/1.25/1.1 A input current (nominal)
- 4-1/4 x 4-3/4 in (2 coil) core
- 1-3/4 in Dia x 3-3/4 in H oval capacitor
- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
- Constant lamp wattage for optimal color control and maximum performance
- Significant energy savings can be achieved when compared to incandescent or magnetic alternatives
- IntelliVolt operates on either 120 or 277 VAC or any voltage in between 50/60 Hz
- Smaller and lighter weight than magnetic HID F-can ballasts
- Compact footprints provides greater design flexibility
- Reduced input watts compared to magnetic systems, energy savings, lower cost of ownership
- Low frequency lamp operation prevents acoustic resoce in the lamp arc tube
- Square wave output waveform helps maximize lamp life
- Lamp EOL detection shuts down system at lamp end of life, enhanced safeguard
- Thermally protected, internally fused and output short circuit protected
- Lamp wattage will change less than 0.5% with a +/-10% change in-line voltage
- Metallic enclosure provides enhanced capability for high ambient temperatures by transferring heat away from sensitive internal components
71A5792001D Standards
RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class HSKU #2228927Part Number #71A5792001DUNSPSC39101902UPC00781087120804

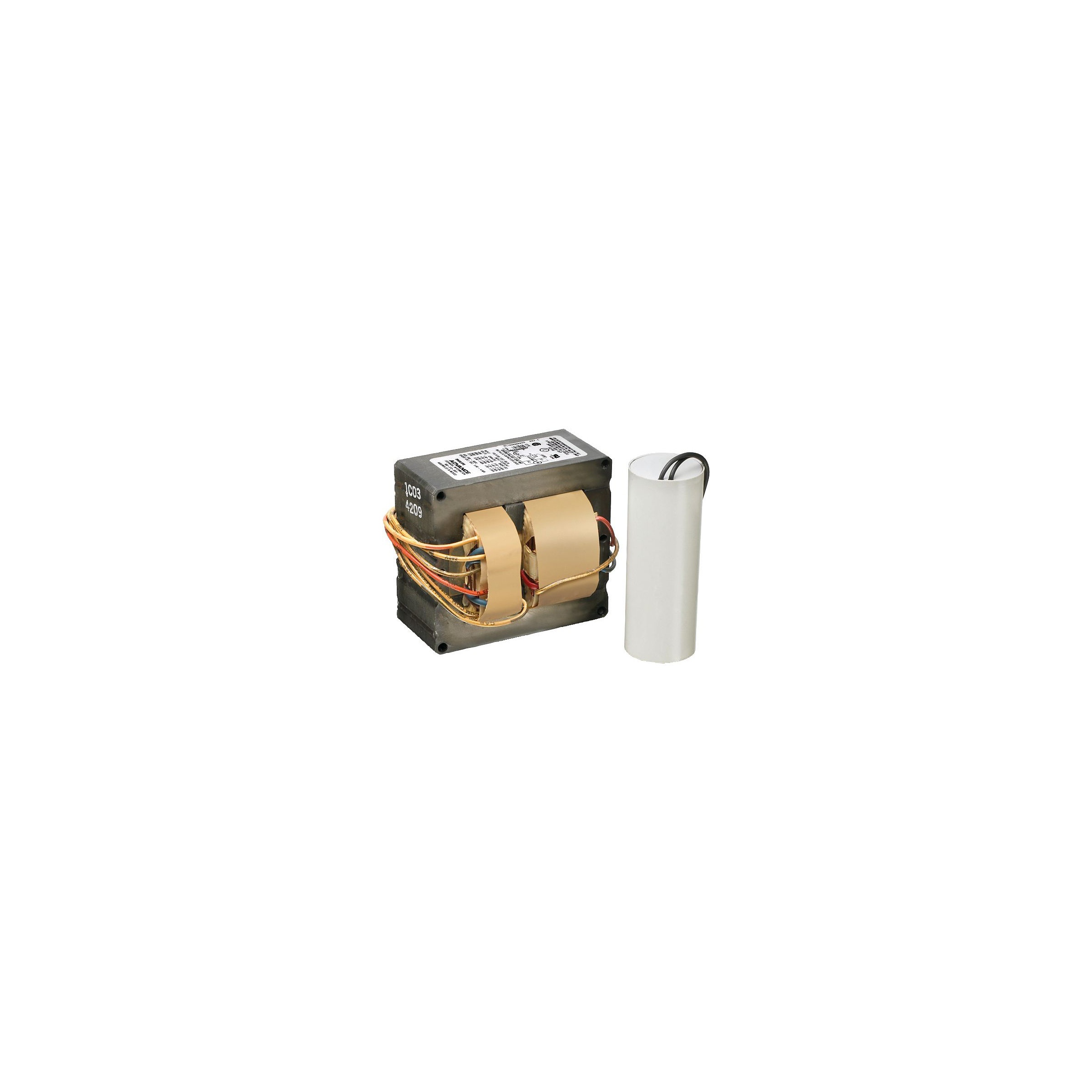

Image provided may only be a representation of final product and may include optional equipment
