Part Number # 71A6052001D
SKU # 2285396
71A6052001D

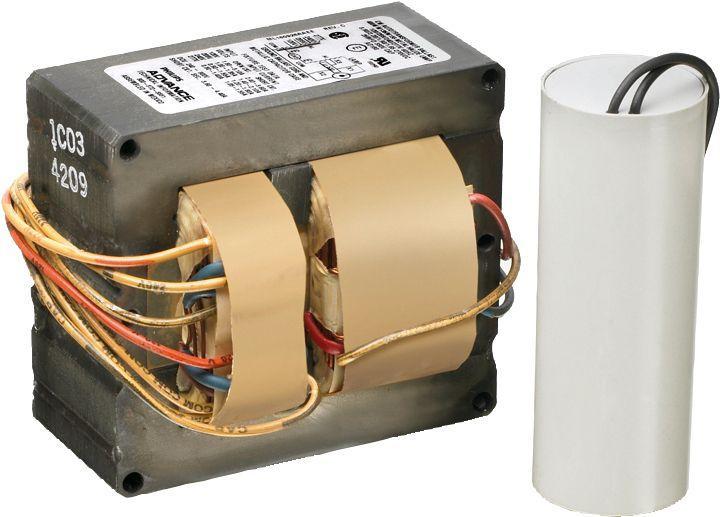

Advance Lighting 71A6052001D HID Ballast
Part Number # 71A6052001D
SKU # 2285396
Advance Lighting 71A6052001D Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | 71A6052001D |
| SKU #: | 2285396 |
| Amperage Rating: | 3.8/2.3/1.9/1.65/0.95, 3.8/2.3/1.9/1.65/0.95 A |
| Dimensions: | 4.75 in L x 4.3 in W x 4.25 in H |
| Dimmable: | No |
| Lamp Base Type: | 71A6052A |
| Lamp Type: | HID Metal Halide |
| Minimum Starting Temperature: | -20, -20 deg F |
| Start Type: | Pulse |
| Wattage: | 454, 454 W |
| UNSPSC: | 39101902 |
| UPC: | 00781087087695 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Advance Lighting 71A6052001D HID Ballast
Brand: Advance Lighting
Part Number: 71A6052001D
Advance HID Ballast, Magnetic, HID Metal Halide Lamp, 400 W Lamp, 454 W Wattage, 120/208/240/277/480 VAC, 3.8/2.3/1.9/1.65/0.95 A, 60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Power Factor: 0.9, No Dimmable, 1 Lamp, Thermal Protection: Class P, 71A6052A Lamp Base, Ballast Factor: 1, ANSI M135/M155 Ballast Grade, 4.75 in L x 4.3 in W x 4.25 in H Dimensions
Additional Description: ADVT-71A6052001D 71A6052001D MH BAL 400W M135/M155 5-TAP KIT
Catalog Description: Reliable performance;Vacuum-pressure impregnation is used to re-enforce the electrical insulation of the ballast, preclude moisture, inhibit noise, and dissipate heat;Pre-insulated voltage leads reduce the risk of shock and shrink installation time;The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire. The core and coil also forms the nucleus of Philips Advance's five other ballast configurations.;Vacuum-pressure impregnated with a silica-filled polyester varnish;All core and coil ballasts below 600W utilize a UL Class H (180ºC) insulation system;C and C ballasts 600W and higher utilize a UL Class N (200ºC) insulation system;Pre-insulated voltage leads;Ballast kits supplied with pre-wired ignitor;High bay retail, manufacturing, gymnasiums, warehouses, parking structures, outdoor
71A6052001D Application
Lighting Luminaire Component and Outdoor Applications71A6052001D Item Features
- The basic ballast is the open core and coil which is most often used as a component within a lighting luminaire
- The core and coil also forms the nucleus of Philips Advance five other ballast configurations
- 26 Mfd capacitor
- 2.7/1.6/1.3/0.8/0.65 A input current (open circuit), 3/1.7/1.5/1.2/0.75 A input current (starting), 2.2 to 3.4/1.35 to 2.1/1.1 to 1.7/0.75 to 1.3/0.55 to 0.85 A input current (short circuit), 3.8/2.3/1.9/1.65/0.95 A input current (nominal)
- 4-1/4 x 4-3/4 in (2 coil) core
- 1.75 in Dia x 4.8 in H oval capacitor
- Ballast replacement kit with dry film capacitor
- UL insulation class H of 180 deg C
71A6052001D Standards
RoHS Compliant|UL Listed|CSA Certified|UL Recognized|UL Insulation Class HSKU #2285396Part Number #71A6052001DUNSPSC39101902UPC00781087087695
Image provided may only be a representation of final product and may include optional equipment
