Advance Lighting IMH70GLFM e-Vision Metal Halide Ballast
Part Number # IMH70GLFM
SKU # 2287245

IMH70GLFM
Advance Lighting IMH70GLFM e-Vision Metal Halide Ballast
Part Number # IMH70GLFM
SKU # 2287245
$3365.80 / 20Each
Typical price:$4712.00 / Each
Advance Lighting IMH70GLFM Key Features
| Brand: | Advance Lighting |
|---|---|
| Part Number # : | IMH70GLFM |
| SKU #: | 2287245 |
| Amperage Rating: | 0.66 A |
| Dimensions: | 3.9 in L x 3 in W x 1.2 in H |
| Enclosure Type: | NEMA 4B |
| Total Harmonic Distortion: | 15 % |
| Type: | Electronic HID Fixed Output |
| Wattage: | 79 W |
| UNSPSC: | 39101907 |
| UPC: | 00781087041895 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
$3365.80 / 20Each
Typical price:$4712.00 / Each
Quantity:
- Advance e-Vision Metal Halide Ballast, Electronic HID Fixed Output, 70 W Lamp, 79 W Wattage, 120 to 277 V AC, 0.66 A, 50/60 Hz Frequency, Pulse Start, -20 deg F Minimum Starting, Total Harmonic Distortion: 15 %, Power Factor: 0.9, 1 Lamp, Ballast Factor: 1, ANSI C98/M98/C139/M139/M143 Ballast Grade, NEMA 4B Enclosure, 90 deg C, Surface Mounting, Metal, 3.9 in L x 3 in W x 1.2 in H Dimensions
IMH70GLFM Specifications
- Low frequency electronic HID ballasts such as the Philips Advance e-Vision® line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps superior color properties
- This makes ceramic metal halide operated by e-Vision® ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting
- Leads (side exit) with mounting feet
IMH70GLFM Item Features
- Low frequency electronic HID ballasts such as the Philips Advance e-Vision line constantly measure and adjust the wattage, optimizing delivery of the ceramic lamps superior color properties
- This makes ceramic metal halide operated by e-Vision ballasts the premier choice for many applications previously illuminated by either tungsten halogen or incandescent sources, such as retail lighting
- Leads (side exit) with mounting feet
IMH70GLFM Standards
CSA Certified|UL ListedSKU #2287245Part Number #IMH70GLFMUNSPSC39101907UPC00781087041895

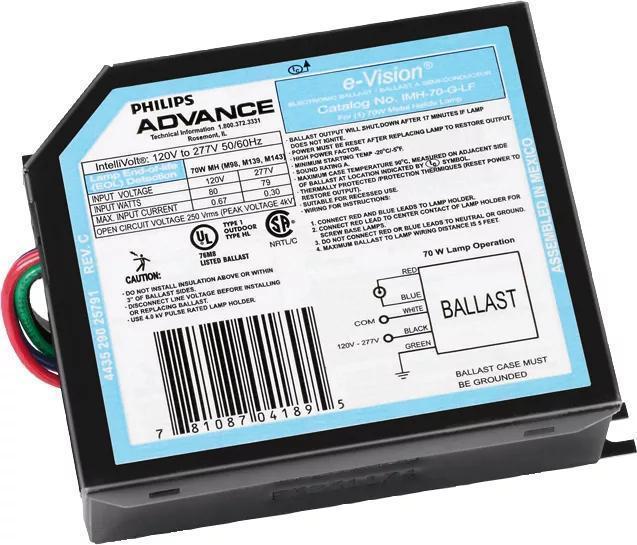

Image provided may only be a representation of final product and may include optional equipment
