Brand: Appleton
0ZGC100A

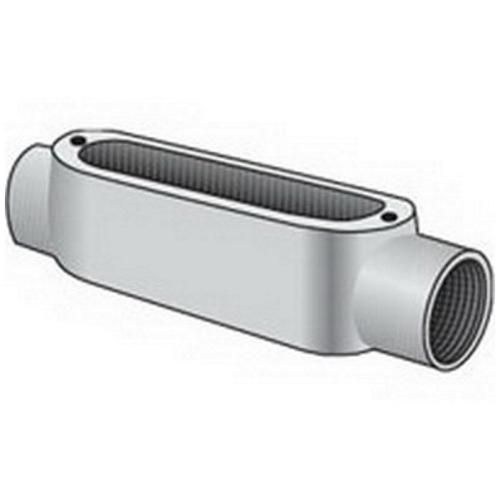

Appleton 0ZGC100A O-Z/Gedney Conduit Outlet Body
Part Number # 0ZGC100A
SKU # 2394255
$26.63 / Each
Typical price:$32.92 / Each
Appleton 0ZGC100A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGC100A |
| SKU #: | 2394255 |
| Capacity: | 12 cu-in |
| Dimensions: | 6-3/4 in L x 1-3/4 in W x 2 in H |
| Enclosure: | NEMA FB-1/FB-2.1 |
| Finish: | Aluminum Enamel/Epoxy Powder Coated |
| Hub Size: | 1 in |
| Type: | Type-C |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Die Cast Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126074222 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$26.63 / Each
Typical price:$32.92 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Body, Type-C, 1 in Hub, 2 Hubs, 12 cu-in Capacity, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Die Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated, 6-3/4 in L x 1-3/4 in W x 2 in H
0ZGC100A Application
Rigid/IMC Conduit Applications0ZGC100A Item Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
0ZGC100A Standards
UL 514A File No. E18095|C22.2 File No. 18/009795|Federal Specification A-A-50563|Hazardous Locations Class 1 Div 2 Per NEC section 501-4(B)SKU #2394255Part Number #0ZGC100AUNSPSC39131708UPC00783126074222
