Part Number # 0ZGFDC150
SKU # 2201711

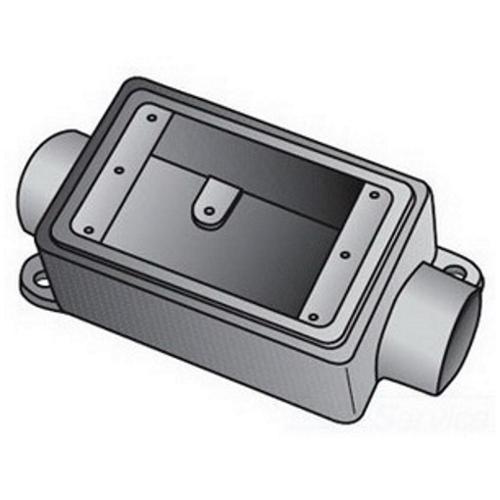

Image provided may only be a representation of
final product and may include optional equipment
0ZGFDC150
Appleton 0ZGFDC150 Device Box
Part Number # 0ZGFDC150
SKU # 2201711
Appleton 0ZGFDC150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGFDC150 |
| SKU #: | 2201711 |
| Cable Entry Size: | Knockout |
| Capacity: | 28, 28 cu-in |
| Dimensions: | 4-11/16 in H x 2-15/16 in W x 3-1/16 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Tri-Coated |
| Hub Size: | 1/2, 1/2 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 1 |
| Number of Knockouts: | 2 |
| Number of Outlets: | 2 |
| Type: | Type FD Deep Heavy Duty |
| Country of origin: | MX |
| Material: | Feraloy Iron Alloy, Feraloy® Iron Alloy |
| Mounting type: | Lug |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121315 |
| UPC: | 00783126201352 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 0ZGFDC150 Device Box
Brand: Appleton
Part Number: 0ZGFDC150
O-Z/Gedney UNILETS Device Box, Type FD Deep Heavy Duty, 2 Outlets, 1 Gangs, 2 Knockouts, 1/2 in Hub, Tapered Threaded Hub, Knockout Cable Entry Size, NEMA FB-1, Lug Mount, 28 cu-in, Feraloy Iron Alloy, Tri-Coated, Gray, 4-11/16 in H x 2-15/16 in W x 3-1/16 in D
Additional Description: APLE-0ZGFDC150 FDC 1 GANG CAST BOX 1/2 IN HUB
Catalog Description: OZ-Gedney Type FDC Deep Cast Device Box, Number Of Outlet: 2, Gray Iron, Size: 1/2 IN, Ridge Top Construction, Cable Entry: (2) 1/2 IN Hubs, 28 CU-IN Capacity, No, 2-15/16 IN Width, 3-1/16 IN Depth, 4-11/16 IN Height, Finish: Zinc Electroplated With Aluminum Enamel, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification A-A-50563, NEMA : FB-1, For Rigid Conduit And IMC
0ZGFDC150 Application
For use with threaded rigid/IMC conduit0ZGFDC150 Includes
Mounting Lugs0ZGFDC150 Item Features
- Corrosion-resistant ideal for indoor and outdoor installations
- Weatherproof, raintight and dust tight when used with cast gasketed covers
- FS and FD boxes take standard flush wiring devices
- FD boxes take devices exceeding 1.63/41.4 mm in depth under fastening ears
- Malleable iron for high tensile strength and ductility provides greater resistance to impact and shock
- Both malleable iron and aluminum boxes have ridge top construction for positive cover/gasket/box fit
- Accurately tapped, tapered threads for tight, rigid joints and ground continuity
- Complete selection of covers, receptacles, plugs, gaskets and accessories
- Covers have captive stainless steel screws to speed installation, prevents loss of screws
- Smooth, rounded integral bushing in each hub protects conductor insulation
- Accommodate wiring devices such as switches and receptacles
- Provide excellent service in areas where boxes are subject to rough usage
- Serve as pull boxes for conductors
- Permit access to conductors for maintece
- Provide openings for making splices
- Allow connections for branch conduit runs
- Blank bodies for special conduit entrance arrangements
- Ridge top construction
- Without knockouts
0ZGFDC150 Standards
UL 514 A, UL File Number E2527, CSA C22.2 No. 18.1, CSA 001472 Certified, NEMA FB-1SKU #2201711Part Number #0ZGFDC150UNSPSC39121315UPC00783126201352
