Part Number # 0ZGLL75A
SKU # 2394250
Image Disclaimers Message
0ZGLL75A

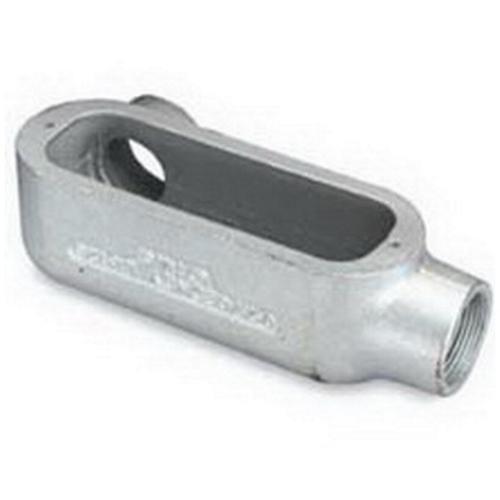

Appleton 0ZGLL75A O-Z/Gedney Conduit Outlet Body
Part Number # 0ZGLL75A
SKU # 2394250
$18.47 / Each
Typical price:$22.84 / Each
Appleton 0ZGLL75A Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGLL75A |
| SKU #: | 2394250 |
| Capacity: | 7.3 cu-in |
| Dimensions: | 5-1/8 in L x 1-5/8 in H |
| Enclosure: | NEMA FB-1/FB-2.1 |
| Finish: | Aluminum Enamel/Epoxy Powder Coated |
| Form: | 85 |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | IN |
| Material: | Sand Cast Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126379426 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$18.47 / Each
Typical price:$22.84 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Body, Type LL, 2 Hubs, 7.3 cu-in Capacity, 85 Form, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Sand Cast Copper Free Aluminum, Aluminum Enamel/Epoxy Powder Coated, 5-1/8 in L x 1-5/8 in H
0ZGLL75A Application
Rigid/IMC Conduit Applications0ZGLL75A Item Features
- Tapered threaded hubs (NPT)
- Raintight when used with gasketed covers
- Internal volume and maximum wire capacity clearly marked on castings
- Suitable for wet locations when used with gasketed covers
0ZGLL75A Standards
UL 514A File No. E18095|C22.2 File No. 18/9795|Federal Specification A-A-50563 Class 1 Div 2 Per NEC Section 501-4(B)SKU #2394250Part Number #0ZGLL75AUNSPSC39131708UPC00783126379426
