Part Number # 0ZGLL87
SKU # 2248251

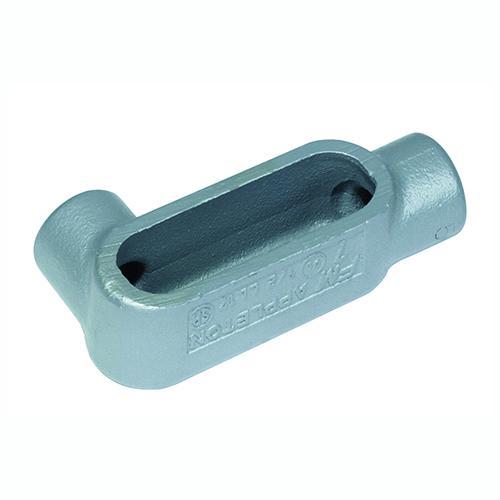

Image provided may only be a representation of
final product and may include optional equipment
0ZGLL87
Appleton 0ZGLL87 Conduit Outlet Body
Part Number # 0ZGLL87
SKU # 2248251
Appleton 0ZGLL87 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGLL87 |
| SKU #: | 2248251 |
| Capacity: | 133, 133 cu-in |
| Dimensions: | 10.5 in L x 5.75 in W x 5.88 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Form: | Form 7 |
| Type: | Type LL |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126379266 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 0ZGLL87 Conduit Outlet Body
Brand: Appleton
Part Number: 0ZGLL87
O-Z/Gedney UNILETS Conduit Outlet Body, Type LL, 2 Hubs, 133 cu-in Capacity, Form 7 Form, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Aluminum Enamel/Zinc Electroplated, Gray, 10.5 in L x 5.75 in W x 5.88 in H
Additional Description: APLE-0ZGLL87 3 IN FORM7 LL COND BODY
Catalog Description: Rigid Conduit Body, Access Opening Left Side, Configuration LL, Hub Location 90 Deg, Number of Hubs 2, Hub Size 3 Inch, Size 10-1/2 Inch L x 4-3/8 Inch W x 5-3/4 Inch H, Installation Threaded, Material Zinc Electroplated Aluminum Enameled Gray Iron, Form Type Form 7, Approval UL 514A, CSA C22.2, Used On Rigid Conduit/IMC, Applicable Standard Federal Specification A-A-50563, NEMA FB-1/FB-2.10, Capacity 126 Cu Inch
0ZGLL87 Application
Rigid/IMC Conduit Applications0ZGLL87 Item Features
- Flat back design for greater wiring capacity and surface mountings
- Complete interchangeability with other manufacturers Form 7 conduit bodies
- Internal volume and maximum wire clearly marked on castings
0ZGLL87 Standards
UL 514A File No. E18095|C22.2 File No. 18/009795|Federal Specification A-A-50563|Hazardous Locations Class 1 Div 2 Per NEC section 501-4(B)SKU #2248251Part Number #0ZGLL87UNSPSC39131708UPC00783126379266
