0ZGLR27

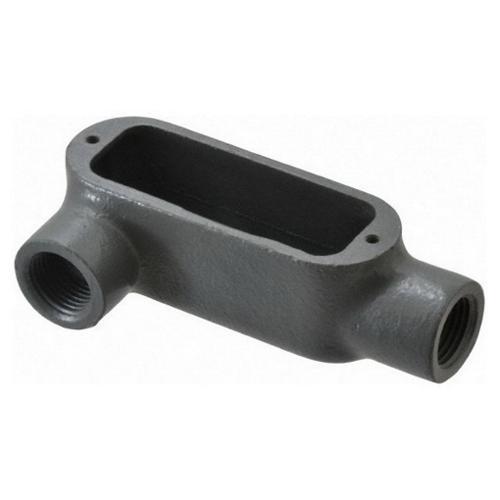

Appleton 0ZGLR27 Conduit Outlet Body
Part Number # 0ZGLR27
SKU # 2368674
$16.21 / Each
Typical price:$18.37 / Each
Appleton 0ZGLR27 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGLR27 |
| SKU #: | 2368674 |
| Capacity: | 6.9, 6.9 cu-in |
| Dimensions: | 5-3/16 in L x 2-7/16 in W x 1-5/8 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Aluminum Enamel/Zinc Electroplated |
| Form: | Form 7 |
| Hub Size: | 3/4, 3/4 in |
| Type: | Type LR |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126387827 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$16.21 / Each
Typical price:$18.37 / Each
Quantity:
- O-Z/Gedney Conduit Outlet Body, Type LR, 3/4 in Hub, 2 Hubs, 6.9 cu-in Capacity, Form 7 Form, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Aluminum Enamel/Zinc Electroplated, Gray, 5-3/16 in L x 2-7/16 in W x 1-5/8 in H
0ZGLR27 Application
Rigid/IMC Conduit Applications0ZGLR27 Item Features
- Flat back design for greater wiring capacity and surface mountings
- Complete interchangeability with other manufacturers Form 7 conduit bodies
- Internal volume and maximum wire clearly marked on castings
- Time-saving clip-on covers
- Suitable for wet locations when used with gasketed covers
- Right side accesses opening
0ZGLR27 Standards
RoHS Compliant|UL 514A File No. E18095|C22.2 File No. 18/009795|Federal Specification A-A-50563|Hazardous Locations Class 1 Div 2 Per NEC Section 501-4(B)SKU #2368674Part Number #0ZGLR27UNSPSC39131708UPC00783126387827
