Part Number # 0ZGTB67
SKU # 2216164
0ZGTB67

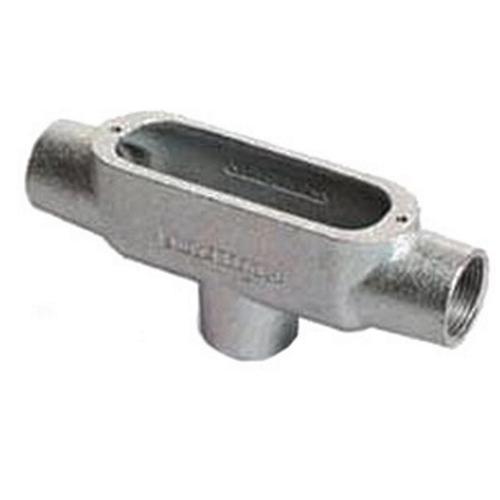

Appleton 0ZGTB67 Conduit Outlet Body
Part Number # 0ZGTB67
SKU # 2216164
Appleton 0ZGTB67 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 0ZGTB67 |
| SKU #: | 2216164 |
| Capacity: | 50, 50 cu-in |
| Dimensions: | 9-3/16 in L x 3 in W x 4-1/4 in H |
| Enclosure: | NEMA FB-1/FB-2.1, NEMA FB-1/FB-2.10 |
| Finish: | Zinc Electroplated/Aluminum Enamel |
| Form: | Form 7 |
| Hub Size: | 2, 2 in |
| Type: | Type TB |
| Connection type: | Tapered FNPT |
| Country of origin: | MX |
| Material: | Grayloy Iron |
| Mounting type: | Surface |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131708 |
| UPC: | 00783126522884 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 0ZGTB67 Conduit Outlet Body
Brand: Appleton
Part Number: 0ZGTB67
O-Z/Gedney Conduit Outlet Body, Type TB, 2 in Hub, 3 Hubs, 50 cu-in Capacity, Form 7 Form, NEMA FB-1/FB-2.1 Enclosure, Tapered FNPT Connection, Surface Mounting, Grayloy Iron, Zinc Electroplated/Aluminum Enamel, Gray, 9-3/16 in L x 3 in W x 4-1/4 in H
Additional Description: APLE-0ZGTB67 2 IN FORM7 TB COND BODY
Catalog Description: OZ-Gedney Type TB Conduit Body, 2 IN Hub, Form: 7, Length: 9-3/16 IN, 3 IN Width, 4-1/4 IN Height, Iron, Finish: Zinc Electroplated With Aluminum Enamel, Gray, Connection: Tapered FNPT, 3 (2 AWG) Conductors, 50 CU-IN Volume, Third Party Certification: UL File Number E-18095, CSA 009795, Applicable Third Party Standards: UL 514A, CSA C22.2 No.18, Federal Specification Number A-A-50563, Hazardous Locations: Class 1, Division 2 Per NEC Section 501-4(B), NEMA : FB-1, FB-2.10, For Rigid Conduit And IMC
0ZGTB67 Application
Rigid/IMC Conduit Applications0ZGTB67 Item Features
- Flat back design for greater wiring capacity and surface mountings
- Complete interchangeability with other manufacturers Form 7 conduit bodies
- Internal volume and maximum wire clearly marked on castings
- Suitable for wet locations when used with gasketed covers
- Straight hub placement
- Siede access opening
0ZGTB67 Standards
UL 514A File No. E18095|C22.2 File No. 18/009795|Federal Specification A-A-50563|Hazardous Locations Class 1 Div 2 Per NEC section 501-4(B)SKU #2216164Part Number #0ZGTB67UNSPSC39131708UPC00783126522884
Image provided may only be a representation of final product and may include optional equipment
