Part Number # 20PX0505
SKU # 2442403
20PX0505
Appleton 20PX0505 Compound Barrier Cable Connector
Part Number # 20PX0505
SKU # 2442403
Appleton 20PX0505 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 20PX0505 |
| SKU #: | 2442403 |
| Cable Openings: | 20 |
| Finish: | Nickel Plated |
| Series: | PXSS2K |
| Temperature Rating (Degrees F): | -76 to 212 deg F |
| Trade Size: | 1/2 in |
| Type: | Flameproof |
| Cable type: | Unarmored/Tray/Shipboard/SO |
| Connection type: | NPT |
| Country of origin: | GB |
| Material: | Brass |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00078138124976 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 20PX0505 Compound Barrier Cable Connector
Brand: Appleton
Part Number: 20PX0505
Appleton® Compound Barrier Cable Connector, Flameproof, Series: PXSS2K, 1/2 in, Cable Openings: 20, Unarmored/Tray/Shipboard/SO Cable, NPT, Brass, Nickel Plated, -76 to 212 deg F
Additional Description: APLE-20PX0505 PXSS2K CABLE GLAND 050NPT
Catalog Description: PXSS2K Series Standard Cable Gland Connector, Size: 1/2 IN (20), Conductor Range: 0.26 - 0.53 IN, Material: Brass, Finish: Nickel Plated, Enclosure: IP66, IP67, IP68, Nema Rating: NEMA 4X, Temperature Rating: -60 To 100 DEG C, Connection
20PX0505 Application
For unarmored, extra hard usage, tray (TC) and shipboard cables20PX0505 Item Features
- Connector provides an environmental seal on the cable jacket and an explosionproof compound barrier seal around the cable inner cores
- Inner compound barrier and outer sheath sealing area
- Low smoke fume thermoplastic elastomer seal
- Displacement sealing concept
20PX0505 Standards
CSA C22.2 File No. 174 Standard|cCSAus 101909 Certified|Zone 1, Ex d IIC, Ex e II, Ex nR II, Ex tD, IP66, IP67, IP68 ATEX/IECEx Certified|Class I, Div 1, Groups C, D, Class I, Div 2, Groups A, B, C, D, Class II, Div 2, Groups F, G, Class I, Zone 1|NEMA 4X, IP66, IP67, IP68|NEC/CEC Certified|UL 2225 Standard|UL File No. E161256 ListedSKU #2442403Part Number #20PX0505UNSPSC39121431UPC00078138124976

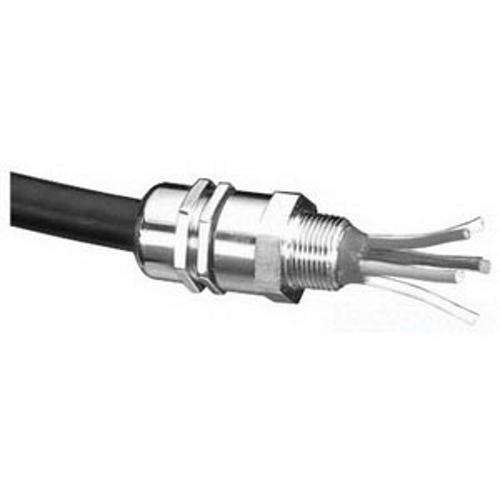

Image provided may only be a representation of final product and may include optional equipment
