Part Number # 24100T
SKU # 2221362
Image provided may only be a representation of
final product and may include optional equipment
24100T

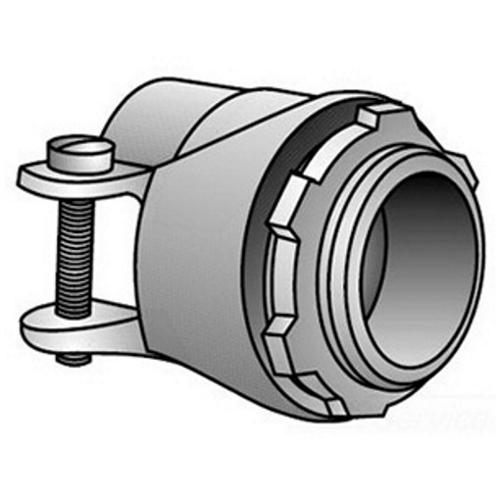

Appleton 24100T Squeeze Cable Connector
Part Number # 24100T
SKU # 2221362
Appleton 24100T Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 24100T |
| SKU #: | 2221362 |
| Angle: | 90, 90 deg |
| Cable Openings: | 1-9/32 to 1-7/16, 1-9/32 to 1-7/16 in |
| Dimensions: | 1.19 in L x 2.19 in W |
| Finish: | Electroplated Zinc |
| Trade Size: | 1, 1 in |
| Type: | Type 24 Center Stopped Insulated Throat Straight |
| Cable type: | Armored |
| Connection type: | Male NPS Hub x Screw Clamp |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121419 |
| UPC: | 00783126712384 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 24100T Squeeze Cable Connector
Brand: Appleton
Part Number: 24100T
O-Z/Gedney Squeeze Cable Connector, Type 24 Center Stopped Insulated Throat Straight, 1 in Trade, Cable Openings: 1-9/32 to 1-7/16 in, Armored Cable, Male NPS Hub x Screw Clamp Connection, 90 deg Angle, Malleable Iron, Electroplated Zinc, 1.19 in L x 2.19 in W Dimensions
Additional Description: APLE-24100T 1 IN STR SQUEEZE CONN INSUL
Catalog Description: OZ-Gedney Type 24 Center Stopped Straight Squeeze Connector, Size: 1 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 1-9/32 - 1-7/16 IN, Malleable Iron, Finish: Zinc Electroplated, Insulated Throat, Dimensions: 1-3/16 IN Length X 2-3/
24100T Application
For grounding and securing armored cable and flexible metal conduit to boxes and enclosures24100T Includes
Locknut24100T Standards
ARRA Compliant|CSA C22.2 No. 18|CSA 009795|UL File No. E11853|UL 514B|NEC 501-4(b) Class I Division II|NEC 350-5|Federal Specification W-F-406ESKU #2221362Part Number #24100TUNSPSC39121419UPC00783126712384
