Part Number # 25PXREX0755X
SKU # 2364137

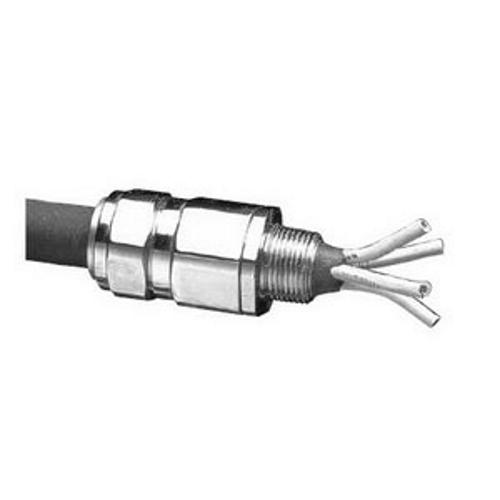

Image provided may only be a representation of
final product and may include optional equipment
25PXREX0755X
Appleton 25PXREX0755X Liquid Resin Barrier Cable Connector
Part Number # 25PXREX0755X
SKU # 2364137
Appleton 25PXREX0755X Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 25PXREX0755X |
| SKU #: | 2364137 |
| Cable Openings: | 0.44 to 0.79, 0.44 to 0.79 in |
| Dimensions: | 3-1/4 in L |
| Finish: | Nickel Plated |
| Series: | PXSS2K-REX |
| Temperature Rating (Degrees F): | -60 to 100, -60 to 100 deg C |
| Trade Size: | 3/4, 3/4 in |
| Type: | Explosionproof Flameproof Straight |
| Cable type: | Unarmored/Tray/Shipboard/SO |
| Connection type: | NPT |
| Country of origin: | GB |
| Material: | Brass |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00781381393539 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 25PXREX0755X Liquid Resin Barrier Cable Connector
Brand: Appleton
Part Number: 25PXREX0755X
Appleton Liquid Resin Barrier Cable Connector, Explosionproof Flameproof Straight, Series: PXSS2K-REX, 3/4 in, Cable Openings: 0.44 to 0.79 in, Unarmored/Tray/Shipboard/SO Cable, NPT, Brass, Nickel Plated, -60 to 100 deg C, 3-1/4 in L
Additional Description: APLE-25PXREX0755X PXSS2K CBL GLD W/RESIN 075NPT
Catalog Description: Cable Gland, Type Straight, Thread Size 3/4 Inch NPT, Constructional Feature Flameproof, Explosionproof, Cable Type Unarmored, Tray, Shipboard, SO Cable, Cable Outer Diameter 0.44 to 0.79 Inch, Material Nickel Plated Brass, Length 3.25 Inch, Enclosure NEMA 4X, IP66/IP67/IP68, Operating Temperature -60 to 100 Deg C, Approval UL 2225, CSA C22.2, Seal Material Low Smoke Fume Thermoplastic Elastomer, High Speed Liquid Resin, Thread Size 15 MM L x 1.5 MM Pitch, Maximum Cable Bedding Diameter 0.71 Inch, Weight 0.4 Kg
25PXREX0755X Item Features
- Utilizes RapidEx high speed liquid resin sealing compound, included with each gland
- Connector provides an environmental seal on the cable jacket and an explosionproof liquid resin barrier seal around the cable inner cores
- Displacement sealing concept
- Inner liquid resin barrier and outer sheath sealing area
25PXREX0755X Standards
CSA C22.2 No. 174/cCSAus 101909 Certified|NEMA 4X|IP66|IP67|IP68/ATEX/IECEx Certified|UL 2225 ListedSKU #2364137Part Number #25PXREX0755XUNSPSC39121431UPC00781381393539
