Part Number # 41250004N
SKU # 25640
41250004N
Appleton 41250004N Toggle Switch
Part Number # 41250004N
SKU # 25640
Appleton 41250004N Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 41250004N |
| SKU #: | 25640 |
| Actuator: | Toggle |
| Amperage Rating: | 10/5, 10/5 A |
| Contact Configuration: | SPST |
| Dimensions: | 0.89 in L x 0.52 in W x 1.72 in H |
| Number of Poles: | 1 |
| Series: | 4125 |
| Terminal Type: | Lead Wire |
| Country of origin: | MX |
| Material: | Phenolic |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39122211 |
| UPC: | 00036283001441 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 41250004N Toggle Switch
Brand: Appleton
Part Number: 41250004N
McGill Toggle Switch, Series: 4125, 125 VAC, 250 VDC, 10/5 A, 1/4 hp Power, SPST Contact Configuration, 1 Pole, Toggle Actuator, Lead Wire Terminal, Phenolic, 0.89 in L x 0.52 in W x 1.72 in H Dimensions
Additional Description: APLE-41250004N TOGGLE SWITCH SPST 6 WIRE LEAD
Catalog Description: McGill full-size, single pole toggle switches, 10 Amp, 125 Vac/Vdc, 5 Amp, 250 Vac/Vdc, 1/4 HP, 125 Vac/Vdc, SPST Poles, Circuitry ON -- OFF, 6 IN Wire Leads
41250004N Application
Marine, Food Service, Generator, Industrial Control and Office Automation Markets41250004N Item Features
- Ruggedly constructed with metallic toggle and threaded bushing to ensure extended service life
- Appropriate for use in low voltage DC applications
- Indicating plate is furnished for maintained ON-OFF circuits
- Mounting hardware consists of nickel plated hex nut and knurled nut
41250004N Standards
RoHS Compliant|UL File No. E335442|UL Standard 1054|Guide WORY2|CSA File No. 249055|CSA C22.2 No.55|UL ListedSKU #25640Part Number #41250004NUNSPSC39122211UPC00036283001441

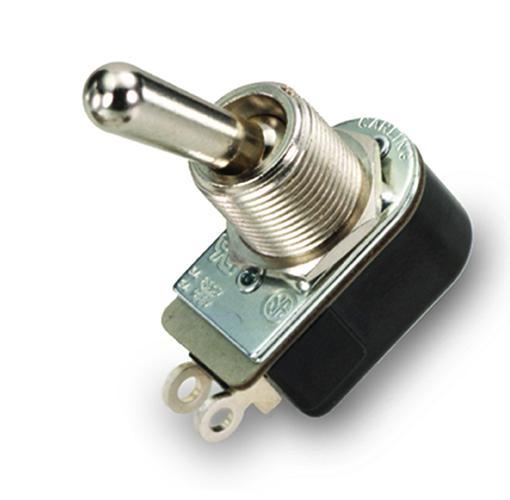

Image provided may only be a representation of final product and may include optional equipment
