Part Number # 4Q100TG
SKU # 2212997
Image Disclaimers Message
Brand: Appleton
4Q100TG

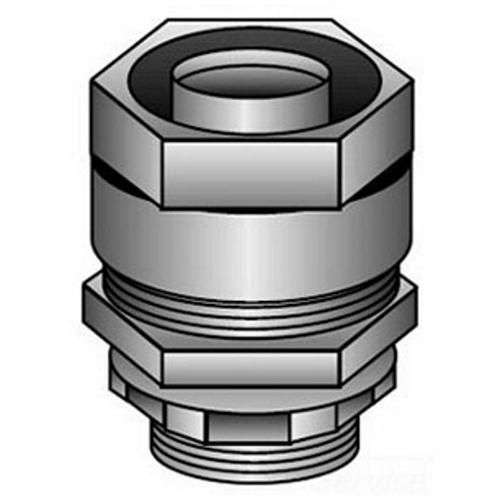

Appleton 4Q100TG Conduit Connector
Part Number # 4Q100TG
SKU # 2212997
$135.45 / 5Each
Appleton 4Q100TG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q100TG |
| SKU #: | 2212997 |
| Angle: | Straight |
| Dimensions: | 1-7/8 in H x 1-3/4 in W |
| Finish: | Galvanized |
| Series: | 4Q-TG |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit |
| Trade Size: | 1 in |
| Type: | Concretetight Liquid Tight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126620160 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$135.45 / 5Each
Quantity:
- O-Z/Gedney Conduit Connector, Concretetight Liquid Tight Oiltight Raintight, Series: 4Q-TG, 1 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Galvanized, 1-7/8 in H x 1-3/4 in W
4Q100TG Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q100TG Includes
Locknut and KO Sealing Ring4Q100TG Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
- Inspection windows in ferrule to ensure full conduit engagement
- Suitable for use in locations exposed to highly corrosive fumes and liquids
4Q100TG Standards
ARRA Compliant|RoHS Compliant|UL 11853|CSA 009795|UL 514B|CSA C22.2 File No. 18|UL File No. E-24264|Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q100TG Warranty
LimitedSKU #2212997Part Number #4Q100TGUNSPSC39121420UPC00783126620160
