Part Number # 4Q150FML
SKU # 2167339
Image provided may only be a representation of
final product and may include optional equipment
4Q150FML

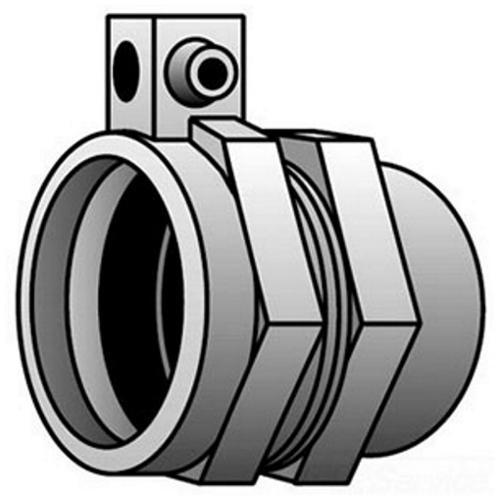

Appleton 4Q150FML Ground-Tite&trade Combination Coupling
Part Number # 4Q150FML
SKU # 2167339
Appleton 4Q150FML Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q150FML |
| SKU #: | 2167339 |
| Dimensions: | 2-1/16 in L x 3-1/4 in H |
| Finish: | Electro-Plated Zinc |
| Size: | 1-1/2, 1-1/2 in |
| Suitable For Use With: | Liquidtight Flexible Metal Conduit to Threaded Rigid Conduit/IMC |
| Type: | Type 4Q-FML |
| Country of origin: | MX |
| Material: | Malleable Iron/Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39131707 |
| UPC: | 00783126617696 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4Q150FML Ground-Tite&trade Combination Coupling
Brand: Appleton
Part Number: 4Q150FML
O-Z/Gedney Ground-Tite Combination Coupling, Type 4Q-FML, 1-1/2 in, For Use With: Liquidtight Flexible Metal Conduit to Threaded Rigid Conduit/IMC, Malleable Iron/Steel, Electro-Plated Zinc, 2-1/16 in L x 3-1/4 in H
Additional Description: APLE-4Q150FML 1-1/2 IN COMB CPLG LFMC/RMC
Catalog Description: OZ-Gedney Ground-Tite Type 4Q-FML Grounding Liquidtight Combination Coupling, Trade Size: 1-1/2 IN, Length: 2-1/16 IN, Flexibility: RMC And IMC, Malleable Iron Body And Nut, Steel Ferrule, Connection: FNPT Hub, Third Party Certification: UL File Number E-24264, CSA 009795, Applicable Third Party Standards: UL 467, CSA C22.2 No. 41, Federal Specification W-F-406E, NEMA : FB-1, Hazardous Locations: Class I, Division 2 per NEC 501.4(B), Class I, Zone 2 per NEC 505.15(C)(2), Class II, Division 1 per NEC 502.4(A)(1)(e), Class II, Division 2 per NEC 502.4(B)(2), Class III, Division 1 per NEC 503.3(A)(2), Class III, Division 2 per NEC 503.3(B), Intrinsically Safe per NEC 504.20, For Threaded Rigid Conduit And IMC
4Q150FML Application
Secures, grounds and seals liquidtight flexible metal conduit and terminates bonding conductor run externally alongside liquidtight conduit to threaded rigid conduit and IMC4Q150FML Item Features
- Positive grounding type
- Female hub NPT
- Grounding lug is cast as an integral part of malleable iron gland nut
- Provides high ground fault withstand capability
- Compact, slim diameter with small turning radius
- Furnished with locknut and knockout sealing ring
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pull-out and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full engagement
- Malleable iron body and nut, steel ferrule
4Q150FML Standards
RoHS Compliant|UL E24264|UL 467|CSA 9795|CSA C22.2 No. 41|W-F-406E Federal Specification|Class I, Division 2 per NEC 501.4(B)|Class I, Zone 2 per NEC 505.15(C)(2)|Class II, Division 1 per NEC 502.4(A)(1)(e)|Class II, Division 2 per NEC 502.4(B)(2)|Class III, Division 1 per NEC 503.3(A)(2)|Class III, Division 2 per NEC 503.3(B)|NEC 504.20SKU #2167339Part Number #4Q150FMLUNSPSC39131707UPC00783126617696
