Part Number # 4Q200WM
SKU # 2267541
Image provided may only be a representation of
final product and may include optional equipment
4Q200WM

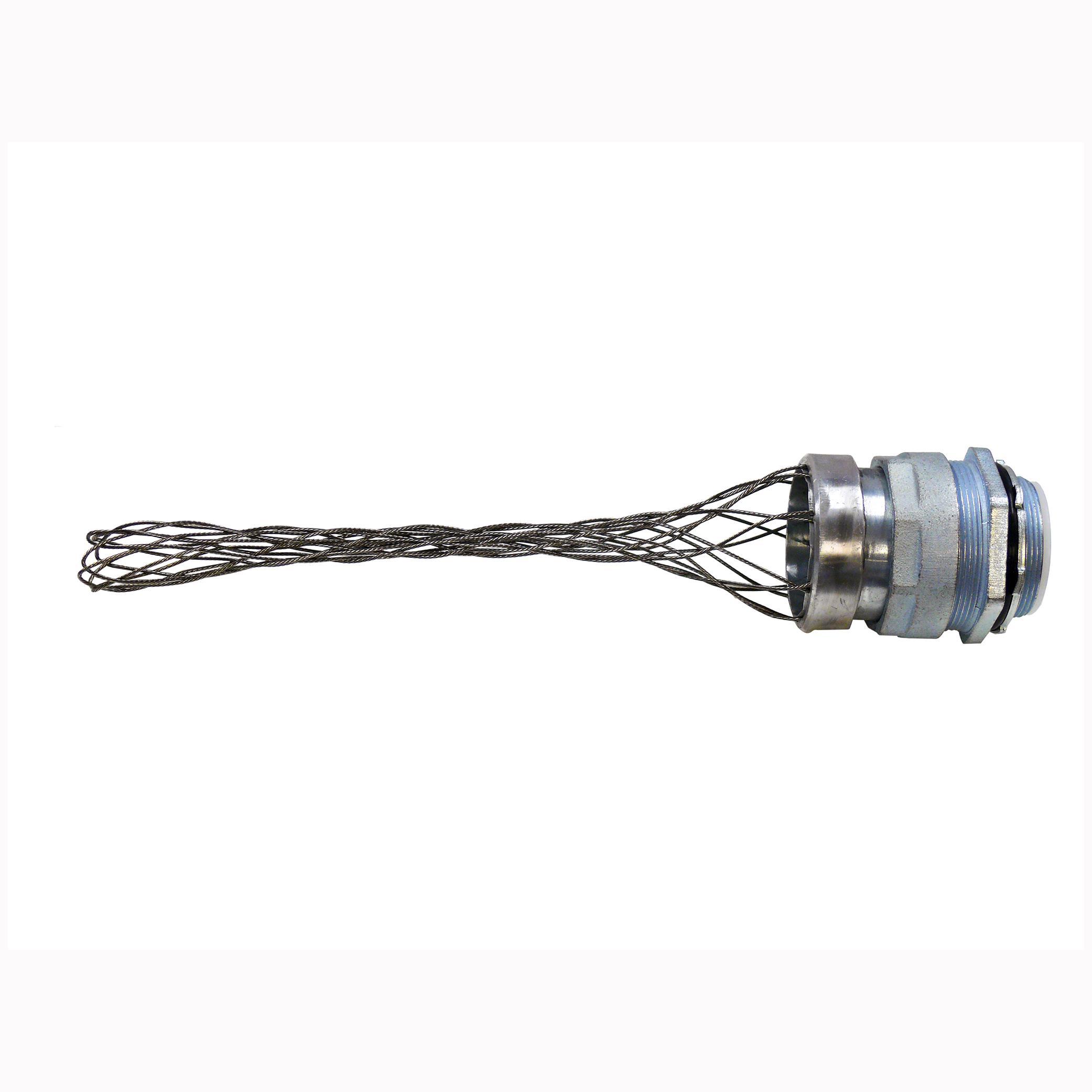

Appleton 4Q200WM Liquidtight Conduit Connector
Part Number # 4Q200WM
SKU # 2267541
Appleton 4Q200WM Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q200WM |
| SKU #: | 2267541 |
| Angle: | Straight |
| Dimensions: | 3-3/16 in Dia x 10-11/16 in L |
| Finish: | Zinc Electroplated |
| Series: | 4Q-WM |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 2, 2 in |
| Type: | Concretetight Liquidtight Oiltight Raintight, Concretetight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126630060 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4Q200WM Liquidtight Conduit Connector
Brand: Appleton
Part Number: 4Q200WM
O-Z/Gedney Liquid Tight Conduit Connector, Concretetight Oiltight Raintight, Series: 4Q-WM, 2 in, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 3-3/16 in Dia x 10-11/16 in L
Additional Description: APLE-4Q200WM 2 IN STR CONN LFMC W/MESH
Catalog Description: Liquidtight Flexible Conduit Connector and Wire Mesh, Trade Size 2 Inch, Connector Type Straight Male, Connector Material Zinc Electroplated Malleable Iron, Throat Type Insulated, Mesh Type Single Weave, Mesh Length 7 Inch, Mesh Material Stainless Steel, Approval UL 514B, CSA C22.2, Used On Liquidtight Flexible Metal Conduit, Applicable Standard NEMA FB-1, W-F-406E, Includes Locknut, Sealing Ring, Zinc Electroplated Steel Ferrule, Size 3-3/16 Inch Dia x 10-11/16 Inch L, Thread Length 3/4 Inch, Application Hazardous Location
4Q200WM Application
Wet Locations4Q200WM Includes
Locknut and Sealing Ring4Q200WM Item Features
- Tapered threaded male hub NPT
- Wire mesh prevents pull out and tight end conduit pop-out
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Inspection windows in ferrule to ensure full conduit engagement
- Stainless steel single weave design
4Q200WM Standards
ARRA Compliant|RoHS Compliant|UL File No. E-11853|CSA 009795|UL 514B|CSA C22.2 File No. 18|Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q200WM Warranty
LimitedSKU #2267541Part Number #4Q200WMUNSPSC39121420UPC00783126630060
