Appleton 4Q300LT
Part Number # 4Q300LT
SKU # 2439017

4Q300LT
Appleton 4Q300LT
Part Number # 4Q300LT
SKU # 2439017
Appleton 4Q300LT Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q300LT |
| SKU #: | 2439017 |
| Cable Openings: | 1 to 4/0 AWG |
| Dimensions: | 3 in H x 5-5/16 in W |
| Series: | 4Q-LT |
| UNSPSC: | 39121420 |
| UPC: | 00783126617979 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton 4Q300LT
Brand: Appleton
Part Number: 4Q300LT

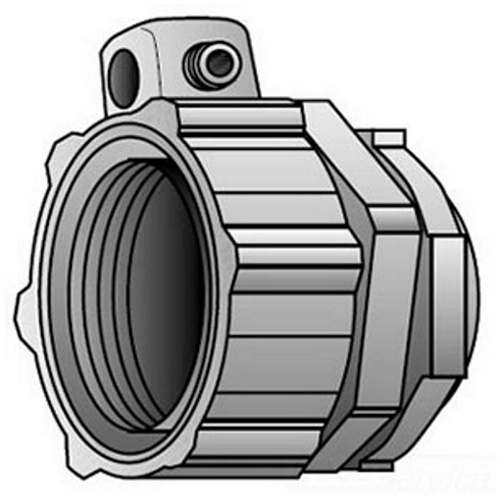

O-Z/Gedney Ground-Tite Conduit Connector, Concretetight Liquid Tight Oiltight Positive Grounding Raintight, Series: 4Q-LT, 3 in, Cable Openings: 1 to 4/0 AWG, Straight, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 3 in H x 5-5/16 in W
Additional Description: APLE-4Q300LT 3 IN STR CONN LFMC W/LUG INSUL
Catalog Description: OZ-Gedney Ground-Tite Type 4Q-LT Grounding Liquid Tight Straight Connector With Lug, Size: 3 IN, Connection: Tapered MNPT Hub, Conductor Range: 1 - 4/0 AWG, Malleable Iron Body and Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA
4Q300LT Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q300LT Includes
Locknut and KO Sealing Ring4Q300LT Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full conduit engagement
- Grounding lug is cast as an integral part of malleable iron gland nut
- Capable of withstanding high ground fault
4Q300LT Standards
ARRA Compliant|RoHS Compliant|UL File No. E-24264|CSA 009795|UL 467|CSA C22.2 File No. 41|Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q300LT Warranty
LimitedSKU #2439017Part Number #4Q300LTUNSPSC39121420UPC00783126617979
Image provided may only be a representation of final product and may include optional equipment
