Appleton 4Q38TG Conduit Connector
Part Number # 4Q38TG
SKU # 2213003

4Q38TG
Appleton 4Q38TG Conduit Connector
Part Number # 4Q38TG
SKU # 2213003
Appleton 4Q38TG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q38TG |
| SKU #: | 2213003 |
| Finish: | Galvanized/Electro-Plated Zinc |
| Type: | Type 4Q-TG Male Straight |
| UNSPSC: | 39121420 |
| UPC: | 00783126620146 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton 4Q38TG Conduit Connector
Brand: Appleton
Part Number: 4Q38TG
O-Z/Gedney Conduit Connector, Type 4Q-TG Male Straight, 3/8 in, 1-1/8 in Dia, For Use With: Liquidtight Flexible Metal Conduit, Malleable Iron/Steel, Galvanized/Electro-Plated Zinc, 1 in L
Additional Description: APLE-4Q38TG 3/8 IN STR CONN LFMC GALV
Catalog Description: Liquidtight Flexible Conduit Connector, Type Straight Male, Throat Type Insulated, Trade Size 3/8 Inch, Material Galvanized Malleable Iron Body, Zinc Electroplated Steel Ferrule, Approval UL 514B, CSA C22.2, Used On Flexible Metallic Liquidtight Conduit, Applicable Standard Federal Specification WF-406E, NEMA, Size 1-1/8 Inch Dia
4Q38TG Application
To secure, ground and seal liquidtight flexible metal conduit to boxes and enclosures, wet locations4Q38TG Item Features
- Tapered threaded male hub (NPT)
- Compact, slim diameter with small turning radius
- Furnished with locknut and KO sealing ring
- Suitable for grounding through 1-1/4 in trade size per NEC
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pull-out and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full conduit engagement
- Galvanized malleable iron body, electro-plated zinc steel ferrule
4Q38TG Standards
ARRA Compliant|RoHS Compliant|UL 514B|UL 11853|CSA C22.2 No. 18|CSA 9795|W-F-406E Federal Specification|Class I, Division 2 Per NEC 501.4(B)|Class I, Zone 2 Per NEC 505.15(C)(2)|Class II, Division 1 Per NEC 502.4(A)(1)(e)|Class II, Division 2 Per NEC 502.4(B)(2)|Class III, Division 1 Per NEC 503.3(A)(2)|Class III, Division 2 Per NEC 503.3(B)|NEC 504.20SKU #2213003Part Number #4Q38TGUNSPSC39121420UPC00783126620146

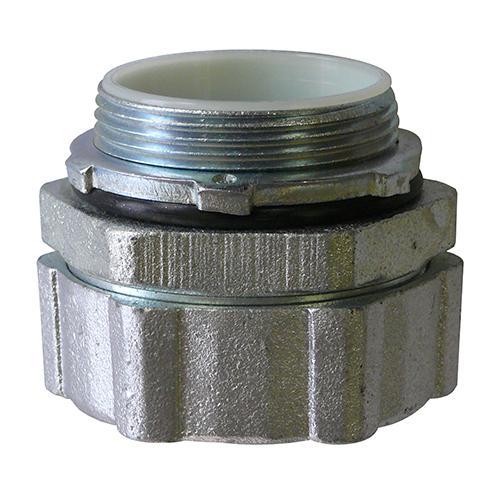

Image provided may only be a representation of final product and may include optional equipment
