Part Number # 4Q4100T
SKU # 2204767

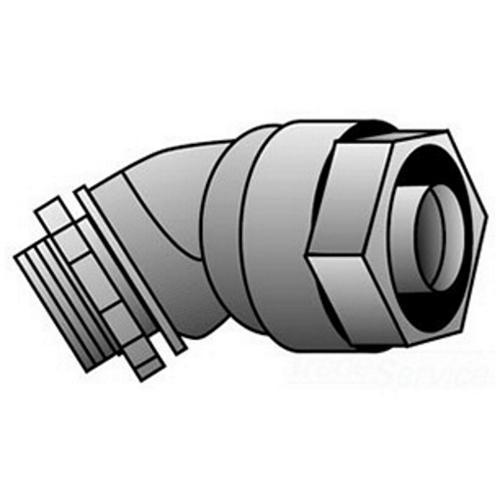

Image provided may only be a representation of
final product and may include optional equipment
4Q4100T
Appleton 4Q4100T Conduit Connector
Part Number # 4Q4100T
SKU # 2204767
Appleton 4Q4100T Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q4100T |
| SKU #: | 2204767 |
| Angle: | 45, 45 deg |
| Dimensions: | 2-1/2 in H x 1-3/4 in W |
| Finish: | Zinc Electroplated |
| Series: | 4Q-T |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 1, 1 in |
| Type: | Concretetight Liquid Tight Oiltight Raintight, Concretetight Liquidtight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126618808 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4Q4100T Conduit Connector
Brand: Appleton
Part Number: 4Q4100T
O-Z/Gedney Conduit Connector, Concretetight Liquid Tight Oiltight Raintight, Series: 4Q-T, 1 in, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 2-1/2 in H x 1-3/4 in W
Additional Description: APLE-4Q4100T 1 IN 45 DEG CONN LFMC INSUL
Catalog Description: OZ-Gedney Type 4Q-T Liquid Tight 45 DEG Connector, Size: 1 IN, Connection: Compression X Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 1-3/4 IN Width, Dimension A:
4Q4100T Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q4100T Includes
Locknut and KO Sealing Ring4Q4100T Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
- Inspection windows in ferrule to ensure full conduit engagement
- Insulated throat to protect against wire damage
4Q4100T Standards
ARRA Compliant|RoHS Compliant|UL 514B|CSA C22.2 File No. 18|UL 11853|CSA 009795|Federal Specification W-F-406E, Class I, Div 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Div 1 Per NEC 502.4(A)(1)(e), Class II, Div 2 Per NEC 502.4(B)(2), Class III, Div 1 Per NEC 503.3(A)(2), Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q4100T Warranty
LimitedSKU #2204767Part Number #4Q4100TUNSPSC39121420UPC00783126618808
