Part Number # 4Q4300LT
SKU # 2301217

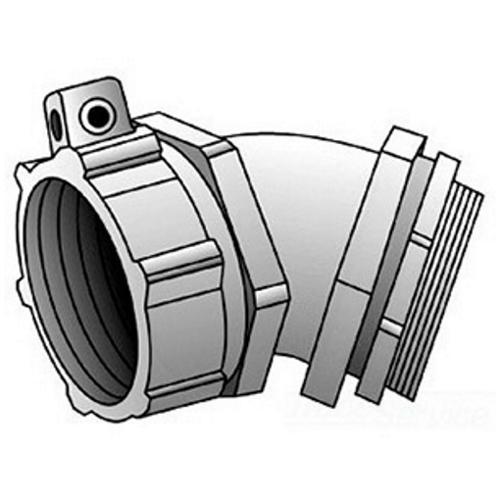

Image provided may only be a representation of
final product and may include optional equipment
4Q4300LT
Appleton 4Q4300LT Conduit Connector
Part Number # 4Q4300LT
SKU # 2301217
Appleton 4Q4300LT Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q4300LT |
| SKU #: | 2301217 |
| Angle: | 45, 45 deg |
| Cable Openings: | 1 to 4/0, 1 to 4/0 AWG |
| Dimensions: | 7.63 in H x 5-5/16 in W |
| Finish: | Zinc Electroplated |
| Series: | 4Q-LT |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 3, 3 in |
| Type: | Concretetight Liquid Tight Oiltight Positive Grounding Raintight, Concretetight Liquidtight Oiltight Positive Grounding Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126619935 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4Q4300LT Conduit Connector
Brand: Appleton
Part Number: 4Q4300LT
O-Z/Gedney Ground-Tite Conduit Connector, Concretetight Liquid Tight Oiltight Positive Grounding Raintight, Series: 4Q-LT, 3 in, Cable Openings: 1 to 4/0 AWG, 45 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 7.63 in H x 5-5/16 in W
Additional Description: APLE-4Q4300LT 3 IN 45 DEG CONN LFMC W/LUG
Catalog Description: OZ-Gedney Ground-Tite Type 4Q-LT Grounding Liquid Tight 45 DEG Connector With Lug, Size: 3 IN, Connection: Tapered MNPT Hub, Conductor Range: 1 - 4/0 AWG, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 5-5/16 IN Width, Dimension A: 6-1/2 IN, 3-1/16 IN Turning Radius Gland Nut, 1-1/8 IN Thread Length, Third Party Certification: UL File Number E-24264, CSA 9795, Hazardous Locations: Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B), Intrinsically Safe Per NEC 504.20, For Liquidtight Flexible Metal Conduit
4Q4300LT Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q4300LT Includes
Locknut and KO Sealing Ring4Q4300LT Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full conduit engagement
- Grounding lug is cast as an integral part of malleable iron gland nut
- Capable of withstanding high ground fault
4Q4300LT Standards
RoHS Compliant|UL File No. E24264|CSA 009795|Class I, Division 2 Per NEC 501.4(B), Class I, Zone 2 Per NEC 505.15(C)(2), Class II, Division 1 Per NEC 502.4(A)(1)(e), Class II, Division 2 Per NEC 502.4(B)(2), Class III, Division 1 Per NEC 503.3(A)(2), Class III, Division 2 Per NEC 503.3(B)/ NEC 504.204Q4300LT Warranty
LimitedSKU #2301217Part Number #4Q4300LTUNSPSC39121420UPC00783126619935
