4Q600L

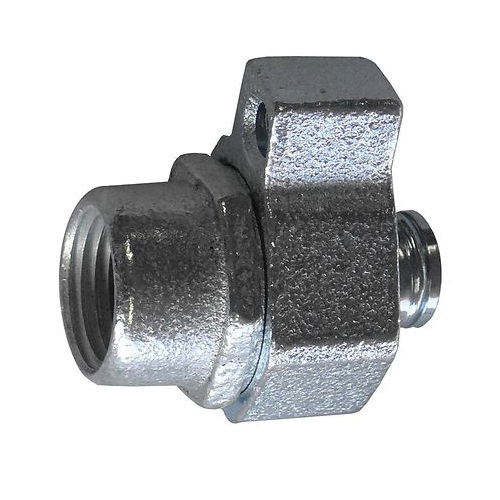

Appleton 4Q600L Ground-Tite&trade Conduit Connector
Part Number # 4Q600L
SKU # 2352230
$2133.79 / Each
Typical price:$3143.80 / Each
Appleton 4Q600L Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q600L |
| SKU #: | 2352230 |
| Dimensions: | 2-1/2 in L x 8-1/2 in H |
| Finish: | Electro-Plated Zinc |
| Suitable For Use With: | Liquidtight Flexible Metal Conduit |
| Trade Size: | 6, 6 in |
| Type: | Type 4Q-L Male Straight |
| Country of origin: | MX |
| Material: | Malleable Iron/Steel |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126618242 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2133.79 / Each
Typical price:$3143.80 / Each
Quantity:
- O-Z/Gedney Ground-Tite Conduit Connector, Type 4Q-L Male Straight, 6 in, For Use With: Liquidtight Flexible Metal Conduit, Malleable Iron/Steel, Electro-Plated Zinc, 2-1/2 in L x 8-1/2 in H
4Q600L Application
To secure, ground and seal liquidtight flexible metal conduit and terminates bonding conductor run externally alongside liquidtight conduit4Q600L Item Features
- Positive grounding type
- Tapered threaded male hub (NPT)
- Grounding lug is cast as an integral part of malleable iron gland nut, provides high ground fault withstand capability
- Compact, slim diameter with small turning radius
- Furnished with locknut and knockout sealing ring
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pull-out and tight bend conduit "pop-out"
- Inspection windows in ferrule to ensure full conduit engagement
- Malleable iron body and nut, electro-plated zinc steel ferrule
4Q600L Standards
ARRA Compliant|RoHS Compliant|WF-406E Federal Specification|Class I, Division 2 Per NEC 501.4(B)|Class I, Zone 2 Per NEC 505.15(C)(2)|Class II, Division 1 Per NEC 502.4(A)(1)(e)|Class II, Division 2 Per NEC 502.4(B)(2)|Class III, Division 1 Per NEC 503.3(A)(2)|Class III, Division 2 Per NEC 503.3(B)|NEC 504.20SKU #2352230Part Number #4Q600LUNSPSC39121420UPC00783126618242
