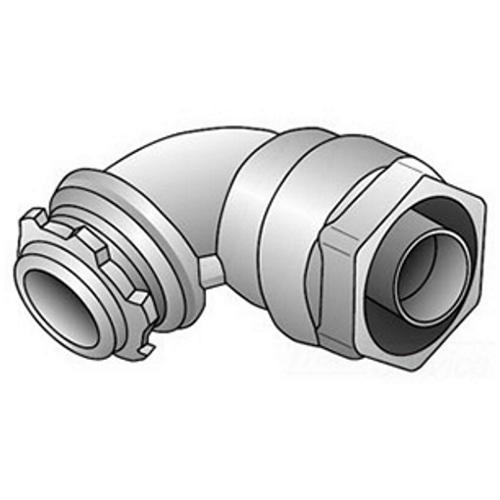

Appleton 4Q9100 Conduit Connector
Part Number # 4Q9100
SKU # 2209843

4Q9100
Appleton 4Q9100 Conduit Connector
Part Number # 4Q9100
SKU # 2209843
Appleton 4Q9100 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q9100 |
| SKU #: | 2209843 |
| Series: | 4Q Series |
| Type: | Concretetight Liquid Tight Oiltight Raintight |
| UNSPSC: | 39121420 |
| UPC: | 00783126619157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton 4Q9100 Conduit Connector
Brand: Appleton
Part Number: 4Q9100
O-Z/Gedney Conduit Connector, Concretetight Liquid Tight Oiltight Raintight, Series: 4Q Series, 1 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 1-3/4 in W
Additional Description: APLE-4Q9100 1 IN 90D LFMC CONN
Catalog Description: OZ-Gedney Type 4Q Liquid Tight 90 DEG Connector, Size: 1 IN, Connection: Compression X Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, 1-3/4 IN Width, Dimension A: 2 IN, Dimension D: 1
4Q9100 Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q9100 Includes
Locknut and KO Sealing Ring4Q9100 Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
- Inspection windows in ferrule to ensure full conduit engagement
4Q9100 Standards
ARRA Compliant|RoHS Compliant|UL 11853|CSA 009795|UL 514B|CSA C22.2 File No. 18|Federal Specification W-F-406E|Class I, Div 2 Per NEC 501.4(B)|Class I, Zone 2 Per NEC 505.15(C)(2)|Class II, Div 1 Per NEC 502.4(A)(1)(e)|Class II, Div 2 Per NEC 502.4(B)(2)|Class III, Div 1 Per NEC 503.3(A)(2)|Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q9100 Warranty
LimitedSKU #2209843Part Number #4Q9100UNSPSC39121420UPC00783126619157
Image provided may only be a representation of final product and may include optional equipment
