Appleton 4Q950T Conduit Connector
Part Number # 4Q950T
SKU # 2329301

4Q950T
Appleton 4Q950T Conduit Connector
Part Number # 4Q950T
SKU # 2329301
Appleton 4Q950T Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q950T |
| SKU #: | 2329301 |
| Suitable For Use With: | Flexible Metallic Liquid Tight Conduit |
| Type: | Type 4Q-T Liquid Tight |
| UNSPSC: | 39121420 |
| UPC: | 00783126618600 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Appleton 4Q950T Conduit Connector
Brand: Appleton
Part Number: 4Q950T
O-Z/Gedney Conduit Connector, Type 4Q-T Liquid Tight, 1/2 in Trade, 90 deg, For Use With: Flexible Metallic Liquid Tight Conduit, Malleable Iron, Zinc Electroplated, 1-1/4 in Dia
Additional Description: APLE-4Q950T 1/2 IN 90 DEG CONN LFMC INSUL
Catalog Description: OZ-Gedney Type 4Q-T Liquid Tight 90 DEG Connector, Size: 1/2 IN, Connection: Compression X Tapered MNPT Hub, Malleable Iron Body And Nut, Steel Ferrule, Finish: Zinc Electroplated, NEMA Rating: NEMA 4, Insulated Throat, 1-1/4 IN Width, Dimension A
4Q950T Application
For wet location applications4Q950T Item Features
- Compact, slim diameter with small turning radius
- Furnished with locknut and knockout sealing ring
- Tapered threaded male hub NPT
- Bonding wedge locknuts are recommended in hazardous locations
- Long ferrule prevents pullout and tight bend conduit pop-out
- Reusable ferrule
- Inspection windows in ferrule to ensure full engagement
4Q950T Standards
ARRA Compliant|RoHS Compliant|ANSI Certified|CEC Certified|CSA C22.2 No. 18/009795|Class I, Div 2 per NEC 501.10(B)(4) Class I, Zone 2 per NEC 505.15(C)(2) Class II, Div 1 per NEC 502.10(A)(2)(2) Class II, Div 2 per NEC 502.10(B)(2)|Class III, Div 1 per NEC 503.10(A)(3)(2) Class III, Div 2 per NEC 503.10(B)|Fed Specification W-F-406E|NEMA FB-1|NEC Certified|UL 514B|UL 11853SKU #2329301Part Number #4Q950TUNSPSC39121420UPC00783126618600

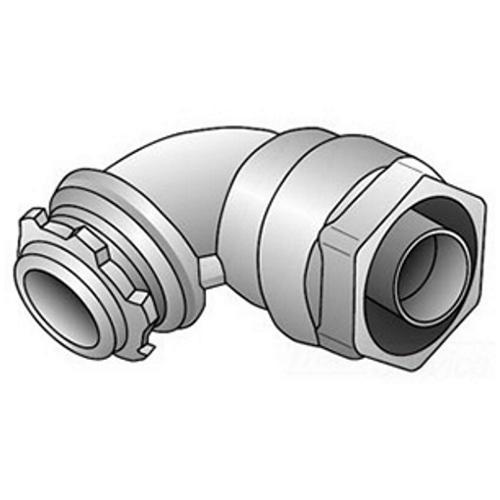

Image provided may only be a representation of final product and may include optional equipment
