Part Number # 4Q950TG
SKU # 2213021
Image provided may only be a representation of
final product and may include optional equipment
4Q950TG

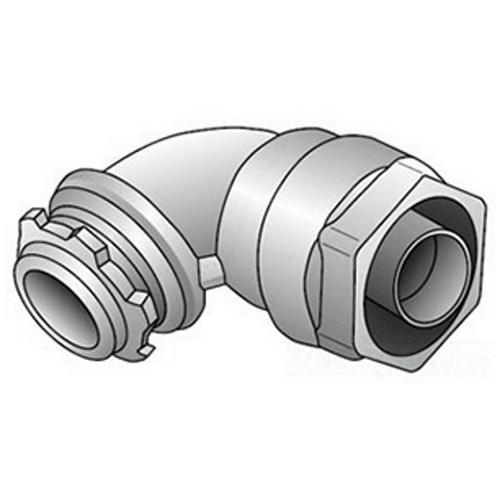

Appleton 4Q950TG Conduit Connector
Part Number # 4Q950TG
SKU # 2213021
Appleton 4Q950TG Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4Q950TG |
| SKU #: | 2213021 |
| Angle: | 90, 90 deg |
| Dimensions: | 1-1/4 in W |
| Finish: | Galvanized |
| Series: | 4Q-TG |
| Suitable For Use With: | Liquid Tight Flexible Metallic Conduit, Liquidtight Flexible Metallic Conduit |
| Trade Size: | 1/2, 1/2 in |
| Type: | Concretetight Liquid Tight Oiltight Raintight, Concretetight Liquidtight Oiltight Raintight |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00783126620412 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4Q950TG Conduit Connector
Brand: Appleton
Part Number: 4Q950TG
O-Z/Gedney Conduit Connector, Concretetight Liquid Tight Oiltight Raintight, Series: 4Q-TG, 1/2 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Galvanized, 1-1/4 in W
Additional Description: APLE-4Q950TG (N) 4Q-950T MECH GAL. NON-CANCELABLE, NON-RETURNABLE
Catalog Description: OZ-Gedney Type 4Q-TG Liquid Tight Connector, Size: 1/2 IN, Connection: Tapered MNPT Hub, Malleable Iron Body, Steel Ferrule, Finish: Galvanized Body, Zinc Electroplated Ferrule, NEMA Rating: NEMA 4, Insulated Throat, Wet Location, 1-1/4 IN Width,
4Q950TG Application
Ground and Seal Liquid tight Flexible Metal Conduit to Boxes and Enclosures4Q950TG Includes
Locknut and KO Sealing Ring4Q950TG Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Intrinsically safe
- Bonding wedge locknuts are recommended in hazardous locations
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
- Inspection windows in ferrule to ensure full conduit engagement
4Q950TG Standards
ARRA Compliant|RoHS Compliant|UL 11853|CSA 009795|UL 514B|CSA C22.2 File No. 18|Federal Specification W-F-406E|Class I, Div 2 Per NEC 501.4(B)|Class I, Zone 2 Per NEC 505.15(C)(2)|Class II, Div 1 Per NEC 502.4(A)(1)(e)|Class II, Div 2 Per NEC 502.4(B)(2)|Class III, Div 1 Per NEC 503.3(A)(2)|Class III, Div 2 Per NEC 503.3(B)|NEC 504.204Q950TG Warranty
LimitedSKU #2213021Part Number #4Q950TGUNSPSC39121420UPC00783126620412
