Appleton 4QS475T Liquidtight Conduit Connector
Part Number # 4QS475T
SKU # 2233118

4QS475T
Appleton 4QS475T Liquidtight Conduit Connector
Part Number # 4QS475T
SKU # 2233118
Appleton 4QS475T Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4QS475T |
| SKU #: | 2233118 |
| Dimensions: | 1.32 in L x 1.62 in W |
| UNSPSC: | 39121420 |
| UPC: | 00687855120710 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.

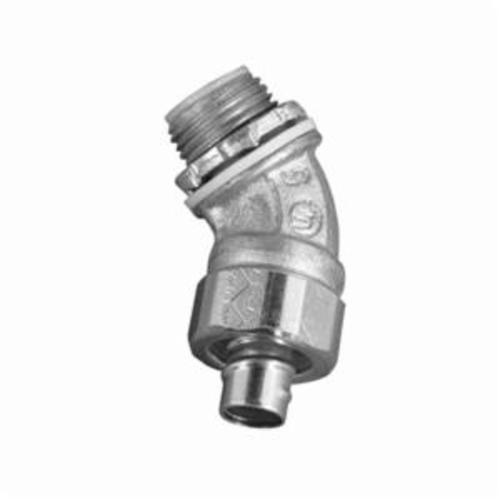

Appleton 4QS475T Liquidtight Conduit Connector
Brand: Appleton
Part Number: 4QS475T
O-Z/Gedney ETP Liquid Tight Conduit Connector, 3/4 in, 45 deg, For Use With: Flexible Metallic Liquid Tight Conduit, Malleable Iron, Metallic, Electroplated Zinc, 1.32 in L x 1.62 in W
Additional Description: APLE-4QS475T 3/4 IN 45D LFMC CONN INSUL
Catalog Description: Liquidtight Fittings, Type: 45 degree, Material: Steel/Zinc Plated, Trade Size 3/4, Dimensions: Body Length 1.50", Thread Length 0.63", Diameter 1.44", UL Standard: 514B, UL Listed: E11853, CSA Standard: C22.2 No.18.3, CSA Certified: 009795, insulated
4QS475T Application
For terminating Liquid tight flexible metal conduit to an enclosure at a 45 degree angle4QS475T Item Features
- Male NPT taper threaded connection
- Insulated throat
- Suitable for wet Locations
- Suitable for use in class I, division 2 locations
- Furnished with locknut and sealing ring
- Compact, slim diameter with small turning radius
- Liquidtight/Raintight/Oiltight
- Long ferrule prevents pullout and tight bend conduit pop-out
- Reusable ferrule
- Raintight environmental conditions
- 0.6 in L thread
4QS475T Standards
RoHS Compliant|UL Standard: 514B; UL Listed: E11853; CSA Standard: C22.2 No. 18.3; CSA Certified: 009795,NEMA: FB-1SKU #2233118Part Number #4QS475TUNSPSC39121420UPC00687855120710
Image provided may only be a representation of final product and may include optional equipment
