Part Number # 4QS9150
SKU # 2412121
4QS9150

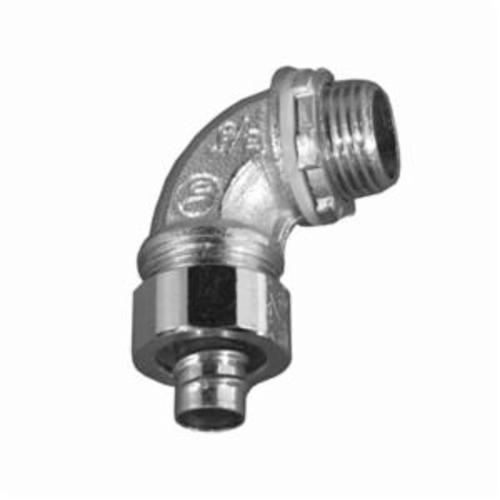

Appleton 4QS9150 O-Z/Gedney Etp Liquid Tight Conduit Connector
Part Number # 4QS9150
SKU # 2412121
Appleton 4QS9150 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 4QS9150 |
| SKU #: | 2412121 |
| Angle: | 90 deg |
| Dimensions: | 2.6 in L x 2.72 in W, 2.72 in W |
| Finish: | Electroplated Zinc, Zinc Electroplated |
| Series: | 4QS |
| Suitable For Use With: | Flexible Metallic Liquid Tight Conduit, Liquid Tight Flexible Metallic Conduit |
| Trade Size: | 1-1/2 in |
| Type: | Liquid Tight Non-Insulated Oiltight Raintight |
| Country of origin: | CN |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121420 |
| UPC: | 00687855120901 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 4QS9150 O-Z/Gedney Etp Liquid Tight Conduit Connector
Brand: Appleton
Part Number: 4QS9150
Appleton® Conduit Connector, Liquid Tight Non-Insulated Oiltight Raintight, Series: 4QS, 1-1/2 in, 90 deg, For Use With: Liquid Tight Flexible Metallic Conduit, Malleable Iron, Zinc Electroplated, 2.72 in W
Additional Description: APLE-4QS9150 1-1/2 IN 90D LFMC CONN
Catalog Description: Liquidtight Fittings, Type: 90 degree, Material: Steel/Zinc Plated, Trade Size 1-1/2, Dimensions: Body Length 2.63", Thread Length 0.72", Diameter 2.38", UL Standard: 514B, UL Listed: E11853, CSA Standard: C22.2 No.18.3, CSA Certified: 009795, NEMA: FB-1
4QS9150 Application
For terminating liquid tight flexible metal conduit to an enclosure4QS9150 Includes
Locknut and Sealing Ring4QS9150 Item Features
- Tapered threaded male NPT hub
- Compact, slim diameter with small turning radius
- Suitable for wet locations
- Long ferrule prevents pullout and tight bend conduit "pop-out"
- Reusable ferrule
4QS9150 Standards
UL 514B|UL File No. E11853|CSA C22.2 No. 18.3|CSA 009795|Class I, Div 24QS9150 Warranty
LimitedSKU #2412121Part Number #4QS9150UNSPSC39121420UPC00687855120901
Image provided may only be a representation of final product and may include optional equipment
