Part Number # 747DAM25
SKU # 2445982
Image Disclaimers Message
Appleton 747DAM25 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 747DAM25 |
| SKU #: | 2445982 |
| Finish: | Nickel Plated |
| Operating Temperature: | -76 to 392 deg F |
| Series: | 747 |
| Thread Size: | M20 |
| Type: | Recessed Head Threaded |
| Country of origin: | GB |
| Material: | Brass |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121311 |
| UPC: | 00078138135572 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8.98 /  Each
Quantity:

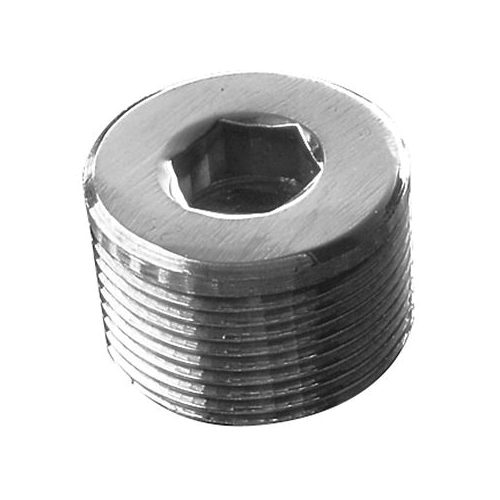

- Appleton Cable Gland Stopper Plug, Recessed Head Threaded, Series: 747, M20 Thread, -76 to 392 deg F Operating, Brass, Nickel Plated747DAM25 ApplicationFor flameproof electrical equipment in hazardous areas747DAM25 Item Features- In general, care should be taken to ensure that a suitable entry thread sealing washer is also selected and installed, where applicable, to ensure that an effective seal is made at the entry, thereby maintaining the integrity of the enclosure or equipment
- Catering to both industrial and hazardous area applications, the range covers a number of different metallic and non-metallic (e.g. nylon) forms
- Compensating displacement seal (CDS) system allows for use with restricted breathing equipment
- Internal Allen key design is considered tamperproof
- Once the equipment has been de-energized and the terminal chamber cover removed it can be removed from the inside
 747DAM25 StandardsUL 886|CAN/CSA C22.2|C22.2 No. 30|EN 60079-0|IEC 60079-0|EN 60079-1|IEC 60079-1|EN 60079-7|IEC 60079-7|EN 61241-1|IEC 61241-1|cCSAus 113642|NEC/CEC Class I, Groups, A, B, C, D|Class II, Group E, F, G|Class III|CE DC07001|ATEX 13ATEX1265X|IECEx SIR 13.0094X|EN 60529|IEC 60529|Lloyds Certified|DNV Listed|ABS Approved|TUV 12.1333XSKU #2445982Part Number #747DAM25UNSPSC39121311UPC00078138135572
