Part Number # 90T33505
SKU # 2388506

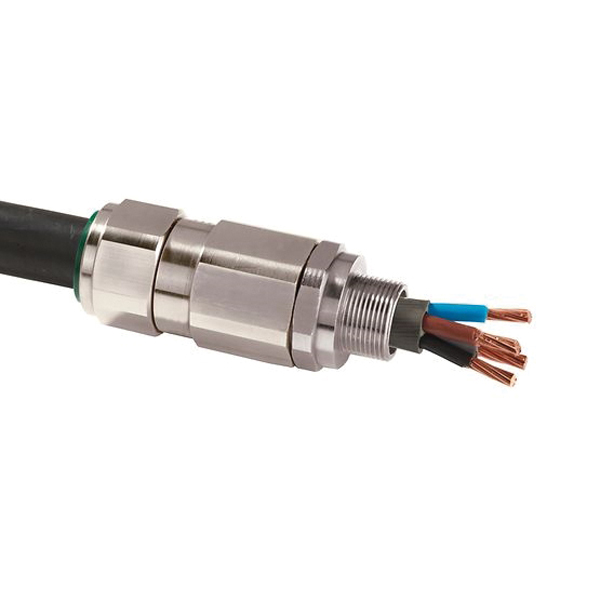

Image provided may only be a representation of
final product and may include optional equipment
90T33505
Appleton 90T33505 T3 Series Straight Cable Gland
Part Number # 90T33505
SKU # 2388506
Appleton 90T33505 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | 90T33505 |
| SKU #: | 2388506 |
| Cable Diameter: | 3 to 3.56, 3 to 3.56 in |
| Finish: | Nickel Plated |
| Series: | T3 Series |
| Temperature Rating (Degrees F): | -60 to 130, -60 to 130 deg C |
| Thread Size: | 4 in NPT |
| Type: | Straight |
| Country of origin: | GB |
| Material: | Brass |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121431 |
| UPC: | 00078138124958 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton 90T33505 T3 Series Straight Cable Gland
Brand: Appleton
Part Number: 90T33505
Appleton Cable Gland, Straight, Series: T3 Series, 4 in NPT Thread, 3 to 3.56 in Cable Dia, 24 mm Thread Length, -60 to 130 deg C, Brass, Nickel Plated
Additional Description: APLE-90T33505 T3CDS CABLE GLAND 350NPT NON-CANCELLABLE , NON-RETURNABLE
Catalog Description: Cable Gland, Type Straight, Thread Size 4 Inch NPT, Constructional Feature Flameproof, Cable Type Armored Cable, Cable Outer Diameter 3 to 3.56 Inch, Material Nickel Plated Brass, Enclosure NEMA 3/4/4X, IP66/IP67/IP68, Operating Temperature -60 to 130 Deg C, Approval UL 2225, CSA C22.2, ATEX/IECEx, Applicable Standard ANSI/ASME B1.20.1, BS 6121, ISO 965, IEC 60079-0/60079-1/60079-7/60079-15/60079-31/61241-0/61241-1, Application Hazardous Areas (Gas and Dust), Onshore and Offshore, Seal Material Low Smoke Fume Thermoplastic Elastomer, Thread Size 24 MM L, Cable Bedding Diameter 2.62 to 3.15 Inch, Weight 5.1 Kg,
90T33505 Application
For use in hazardous areas with all types of armored cable90T33505 Item Features
- Cable gland with elastomer seal for use in hazardous areas with all types of armored cable
- This product utilizes a unique compensating displacement seal (CDS) system which provides full compatibility with restricted breathing equipment
- The CDS system is designed to alleviate any pressure on soft bedded cables
- The cable gland allows mechanical cable retention and earth continuity via armor termination
- A reversible armor cone and anyway universal clamping ring arrangement allows the cable to be easily disconnected from equipment
- The cable gland is IP66/68 rated with deluge protection to DTS01: 91
- Inspection of the armor can be carried out while still maintaining the protection mode of the enclosure
- Sealing technique: Inner displacement seal and LRS (load retention seal) outer seal
- Constructional feature flameproof
90T33505 Standards
ABS Approved|ATEX 94/9/CE EX II 2G 3G 1D|ATEX Sira 13ATEX1073X/13ATEX4079X|ATEX/IECEx Ex d IIC Gb/Ex e IIC Gb/Ex nR IIC Gc/Ex ta IIIC Da|ATEX/IECEx Zone 1 and 2 21 and 22 Ex II 2 GD IP66/68|cCSAus 101909|CCOE/PESO Certified|CE DC07001|CSA C22.2 #174|DNV Approved|Deluge Protection Compliant DTS01:91|EN/IEC 60529 IP66/IP67/IP68|EURASEC TC RU C-GB.05.B.00138|IECEx SIR 13.0028X|IECEx SIM 14.0007X|INMETRO TUV 11.0374X|KCC Certified|LLOYDS Approved|NEC/CEC Class I Division 2 Group A B C D/Class II Division 2 Group E F G/Class III/Class I Zone 1 AEx e IIC|AEx nR II/Ex d IIC|Ex e IIC|Ex nR IIC|UL 2225SKU #2388506Part Number #90T33505UNSPSC39121431UPC00078138124958
