Part Number # AC38
SKU # 2326479

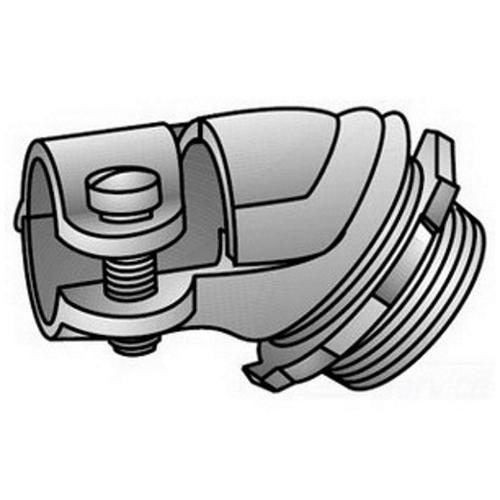

Image provided may only be a representation of
final product and may include optional equipment
AC38
Appleton AC38 Squeeze Conduit Connector
Part Number # AC38
SKU # 2326479
Appleton AC38 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AC38 |
| SKU #: | 2326479 |
| Angle: | 45 deg |
| Cable Openings: | 17/32 to 39/64 in |
| Dimensions: | 1-3/8 in L x 1-1/4 in W |
| Finish: | Zinc Electroplated |
| Suitable For Use With: | Armored/FMC Cable |
| Trade Size: | 3/8 in |
| Type: | Type AC |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121419 |
| UPC: | 00783126014952 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AC38 Squeeze Conduit Connector
Brand: Appleton
Part Number: AC38
O-Z/Gedney Squeeze Conduit Connector, Type AC, 3/8 in Trade, Cable Openings: 17/32 to 39/64 in, 45 deg Angle, For Use With: Armored/FMC Cable, Malleable Iron, Zinc Electroplated Finish, 1-3/8 in L x 1-1/4 in W Dimensions
Additional Description: APLE-AC38 3/8 IN 45 DEG CONN AC/FMC
Catalog Description: OZ-Gedney Type AC 45 DEG Center Stopped Squeeze Connector, Size: 3/8 IN (1/2 IN KO), Connection: Male NPS Hub X Screw Clamp, Conductor Range: 17/32 - 39/64 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 1-3/8 IN Length X 1-1/4 IN Width,
AC38 Application
For grounding, securing armored cable and flexible metal conduit to boxes and enclosuresAC38 Item Features
- Male hub NPS thread connection
- Centre stopped
AC38 Standards
ARRA Compliant|CSA 9795/11584|C22.2 No. 18|Federal Specification W-F-406E|NEC 501-4(b) Class I Div II|NEC 350-5|NEMA FB-1|UL 514B|UL File No. E11853SKU #2326479Part Number #AC38UNSPSC39121419UPC00783126014952
