Part Number # AC75
SKU # 2192937
AC75

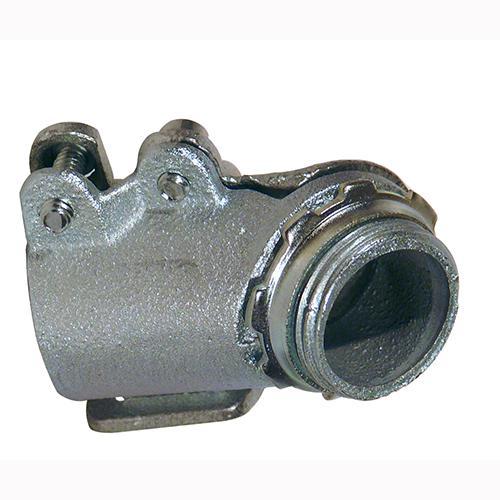

Appleton AC75 Squeeze Conduit Connector
Part Number # AC75
SKU # 2192937
Appleton AC75 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | AC75 |
| SKU #: | 2192937 |
| Angle: | 45, 45 deg |
| Cable Openings: | 0.91 to 1.06, 0.91 to 1.06 in |
| Dimensions: | 2.13 in L x 1.75 in W |
| Finish: | Zinc Electroplated |
| Suitable For Use With: | Armored/FMC Cable |
| Trade Size: | 3/4, 3/4 in |
| Type: | Type AC |
| Country of origin: | MX |
| Material: | Malleable Iron |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121419 |
| UPC: | 00783126015157 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton AC75 Squeeze Conduit Connector
Brand: Appleton
Part Number: AC75
O-Z/Gedney Squeeze Conduit Connector, Type AC, 3/4 in Trade, Cable Openings: 0.91 to 1.06 in, 45 deg Angle, For Use With: Armored/FMC Cable, Malleable Iron, Zinc Electroplated Finish, 2.13 in L x 1.75 in W Dimensions
Additional Description: APLE-AC75 3/4 IN 45 DEG CONN AC/FMC
Catalog Description: OZ-Gedney Type AC 45 DEG Center Stopped Squeeze Connector, Size: 3/4 IN, Connection: Male NPS Hub X Screw Clamp, Conductor Range: 29/32 - 1-1/16 IN, Malleable Iron, Finish: Zinc Electroplated, Dimensions: 2-1/8 IN Length X 1-3/4 IN Width, Third Party Certification: UL File Number E-11852, Hazardous Location: NEC 501-4(b) Class I Division II, NEC 350-5 (Grounding Means) CSA 9795 (Armored Cable), Applicable Third Party Standards: UL 514B, CSA C22.2 No.18, Federal Specification W-F-406E, NEMA : FB-1, For Armored Cable, Flexible Metal Conduit, Non-Metallic And Service Entrance Cable
AC75 Application
For grounding, securing armored cable and flexible metal conduit to boxes and enclosuresAC75 Item Features
- Male hub NPS thread connection
- Centre stopped
AC75 Standards
ARRA Compliant|CSA 9795/11584|C22.2 No. 18|Federal Specification W-F-406E|NEC 501-4(b) Class I Div II|NEC 350-5|NEMA FB-1|UL 514B|UL File No. E11853SKU #2192937Part Number #AC75UNSPSC39121419UPC00783126015157
Image provided may only be a representation of final product and may include optional equipment
