Brand: Appleton
ACP1023CD

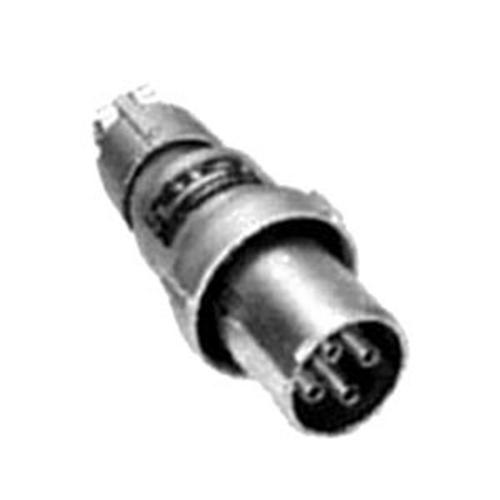

Appleton ACP1023CD Clamping Ring Plug
Part Number # ACP1023CD
SKU # 2272278
$746.34 / Each
Appleton ACP1023CD Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ACP1023CD |
| SKU #: | 2272278 |
| Amperage Rating: | 100, 100 A |
| Dimensions: | 10-1/2 in L x 4 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | ACP |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 1-Phase Grounding Style 2 Weatherproof |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381440134 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$746.34 / Each
Quantity:
- Appleton Powertite Clamping Ring Plug, 1-Phase Grounding Style 2 Weatherproof, Series: ACP, 250 V AC/600 V DC, 100 A, 50/400 Hz Frequency, 3 Pole, 2 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 10-1/2 in L x 4 in W Dimensions
ACP1023CD Application
ADR1023 Receptacle and ARC1023CD Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsACP1023CD Item Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 0.391 in dia wire recess
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Water resistant
ACP1023CD Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2272278Part Number #ACP1023CDUNSPSC39121402UPC00781381440134
