Part Number # ACP3034BC
SKU # 3019

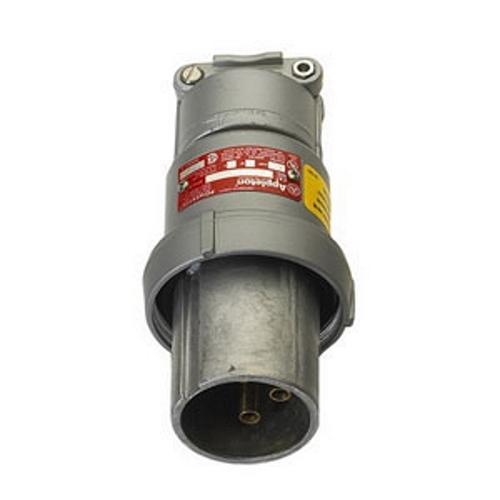

Image provided may only be a representation of
final product and may include optional equipment
ACP3034BC
Appleton ACP3034BC Clamping Ring Plug
Part Number # ACP3034BC
SKU # 3019
Appleton ACP3034BC Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ACP3034BC |
| SKU #: | 3019 |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 6 in L x 3.13 in W |
| Frequency Rating: | 50/400, 50/400 Hz |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Series: | ACP |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121402 |
| UPC: | 00781381440424 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ACP3034BC Clamping Ring Plug
Brand: Appleton
Part Number: ACP3034BC
Appleton Powertite Clamping Ring Plug, 3-Phase Grounding Style 2, Series: ACP, 250/600 VAC/VDC, 30 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, Metallic, 6 in L x 3.13 in W Dimensions
Additional Description: APLE-ACP3034BC 30AMP PLUG 3W-4P STYLE
Catalog Description: Powertite Grounding Style 2 Metallic Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 10 - 6 AWG (Building), 10 - 8 AWG (Extra Flex), Amperage Rating: 30 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase:
ACP3034BC Application
ADR3034 Receptacle and ARC3034BC Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction ApplicationsACP3034BC Item Features
- Shell and extra pole grounding style 2
- Designed to supply power to portable or fixed electrical equipment
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Natural finish glass filled polyester insulating blocks
- 9/32 in dia wire recess
- Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
- Locking screw and slot prevents plug cable collar from "backing off"
- Controlled length contacts ensure that ground makes first and breaks last for added safety
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
ACP3034BC Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #3019Part Number #ACP3034BCUNSPSC39121402UPC00781381440424
