Brand: Appleton

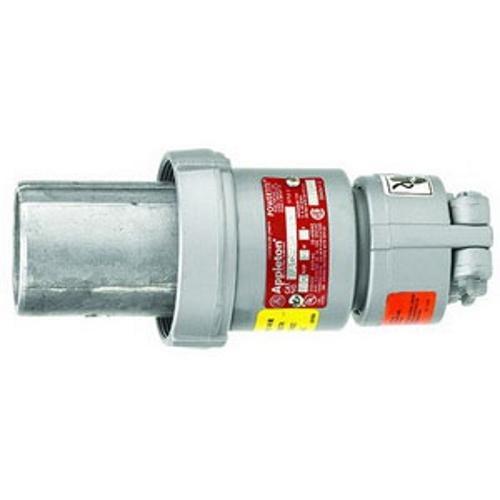

Appleton ACP6034BC Clamping Ring Plug

Name: Appleton ACP6034BC Clamping Ring Plug
Brand: Appleton
Price: 536.15 USD
Availability: OutOfStock

Part Number # ACP6034BC

SKU # 3023

$536.15 / Each

Appleton ACP6034BC Key Features

Brand: Appleton

Part Number # ACP6034BC

SKU #3023

Amperage Rating: 60 A

Dimensions: 7.81 in L x 3.81 in W

Frequency Rating: 50/400, 50/400 Hz

NEMA Rating: NEMA 3/3R/4/4X

Number of Poles: 4

Number of Wires: 3

Series: ACP

Temperature Rating (Degrees F): -40 to 225, -40 to 225 deg F

Terminal Type: Pressure Wire, Pressure Wired

Type: 3-Phase Grounding Style 2

Voltage Rating: 250/600, 250/600 VAC/VDC

Color: Metallic

Country of origin: MX

Material: Copper Free Aluminum

Manufacturer Name: Emerson Electric

UNSPSC: 39121402

UPC: 00781381440226

$536.15 / Each

Quantity

Appleton ACP6034BC Clamping Ring Plug

Brand: Appleton

Part Number: ACP6034BC

Appleton Powertite Clamping Ring Plug, 3-Phase Grounding Style 2, Series: ACP, 250/600 VAC/VDC, 60 A, 50/400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, Metallic, 7.81 in L x 3.81 in W Dimensions

Additional Description: APLE-ACP6034BC 60 PLUG ASSY

Catalog Description: Powertite Grounding Style 2 Metallic Clamping Ring Plug, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 6 - 2 AWG (Building), 6 - 4 AWG (Extra Flex), Amperage Rating: 60 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 VDC, Phase: 3

ACP6034BC Application

ADR6034 Receptacle and ARC6034BC Connector Body, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Ship to Shore and Rough Usage Construction Applications

ACP6034BC Item Features

Shell and extra pole grounding style 2
Designed to supply power to portable or fixed electrical equipment
Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
Natural finish glass filled polyester insulating blocks
5/16 in dia wire recess
Plug and receptacle combination is NEMA 4X rated when clamping ring is fully tightened on receptacle
Locking screw and slot prevents plug cable collar from "backing off"
Controlled length contacts ensure that ground makes first and breaks last for added safety
Contacts exert constant pressure along entire contact surface and provide electrical continuity
Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing

ACP6034BC Standards

UL 1682|UL 1686|UL 50E File No. E145916/E145917|CSA C22.2 No. 182.1|CSA File No. 065179

SKU #3023

Part Number #ACP6034BC

UNSPSC39121402

UPC00781381440226
