Part Number # ACSEW181808
SKU # 2445548

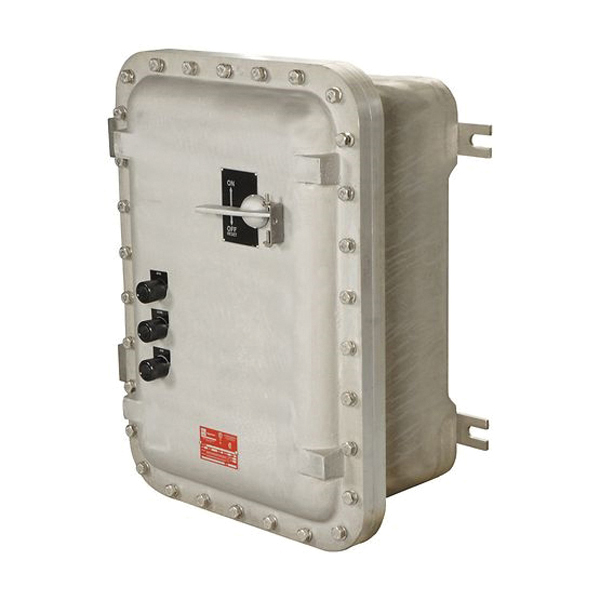

Image provided may only be a representation of
final product and may include optional equipment
ACSEW181808
Appleton ACSEW181808
Part Number # ACSEW181808
SKU # 2445548
$8602.52 / Each
Typical price:$11699.43 / Each
Appleton ACSEW181808 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ACSEW181808 |
| SKU #: | 2445548 |
| Actuator: | Push Button |
| Contact Rating: | 10 A at 600 V AC, 10 A at 600 VAC |
| Dimensions: | 23.38 in W x 11.94 in D x 23.38 in H |
| Finish: | Shot Blast |
| NEMA Rating: | NEMA 4/7BCD/9EFG/IP66 |
| Number of Operators: | 36 |
| Series: | ACSEW |
| Country of origin: | US |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121331 |
| UPC: | 00781381847780 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$8602.52 / Each
Typical price:$11699.43 / Each
Quantity:
- Appleton Cast Control Center, Series: ACSEW, 36 Operators, 10 A at 600 V AC Contact, Push Button Actuator, NEMA 4/7BCD/9EFG/IP66 NEMA Rating, Copper-Free Aluminum, Shot Blast, 23.38 in W x 11.94 in D x 23.38 in H
ACSEW181808 Item Features
- Constructional feature explosionproof and dust-ignitionproof
- Precision machined flame path between body and cover
- O-ring gasket insures watertight integrity
- Bolt on stainless steel slotted mounting feet
- External flange maximizes internal space
- Flexible hinge mounting on either side
- Wall thickness suitable for minimum of 5 full threads
- Factory assembled and wired to specifications
- Operators are spaced on 2-1/2 in centers
- All pushbuttons and selector switches have stainless steel shafts
- Pushbutton and selector switches are rated 10 A 600 VAC
- Pilot lights are rated 6 VAC up to 600 VAC with transformer
- For window installed option, contact your local representative for maximum number of operators
- Provision for mounting pan
- Ground lug package and installation instructions for termination of ground wires enclosed
- 6 V transformer pilot light
- 18.25 in L x 18.25 in W x 7.75 in D inner
- 0.94 in THK cover
ACSEW181808 Standards
CSA C22.2 #14-M/24/30/042130|NEC/CEC Class I Division 1 and 2 Group B C D/Class I Zone 1 and 2 Group IIA IIB/Class II Division 1 and 2 Group E F G/Class III|UL 1203/E84577/E10449SKU #2445548Part Number #ACSEW181808UNSPSC39121331UPC00781381847780
