Appleton ADJA1034150RS Pin and Sleeve Receptacle
Part Number # ADJA1034150RS
SKU # 2237745
Appleton ADJA1034150RS Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADJA1034150RS |
| SKU #: | 2237745 |
| Amperage Rating: | 100, 100 A |
| Cord Diameter: | 0.875 to 1.906, 0.875 to 1.906 in |
| Dimensions: | 11.44 in H x 7.88 in W x 9 in D |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Horsepower: | 40, 40 hp |
| Hub Size: | 1-1/2, 1-1/2 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 Reverse Service |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381711340 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Appleton ADJA1034150RS Pin and Sleeve Receptacle
Brand: Appleton
Part Number: ADJA1034150RS
Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2 Reverse Service, 600/250 VAC/VDC, 100 A, 40 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 1-1/2 in Hub, 0.875 to 1.906 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 11.44 in H x 7.88 in W x 9 in D Dimensions
Additional Description: APLE-ADJA1034150RS 100A RECP 3W4P WITH BACK BOX
Catalog Description: Powertite Grounding Style 2 Receptacle With AJA Mounting Box, Number Of Poles: 4, Number Of Wires: 3, Wire Size: 4 - 1 AWG (Building), 4 - 2 AWG (Extra Flex), Amperage Rating: 100 AMP, Voltage Rating: 600 VAC At 50 - 400 HZ, 250 V
ADJA1034150RS Application
ACP1034CD Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsADJA1034150RS Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 0.391 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, brass with beryllium copper springs
ADJA1034150RS Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2237745Part Number #ADJA1034150RSUNSPSC39121406UPC00781381711340

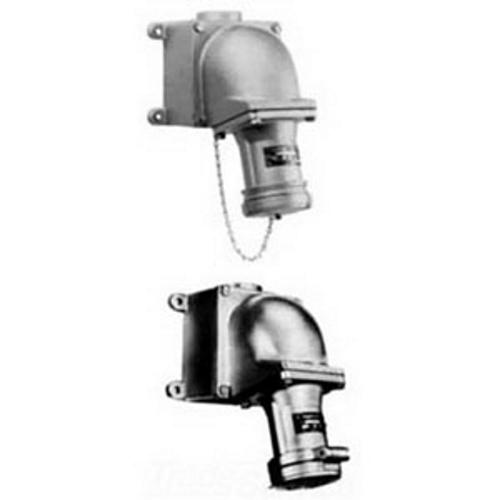

Image provided may only be a representation of final product and may include optional equipment
