Brand: Appleton
ADJA20034200

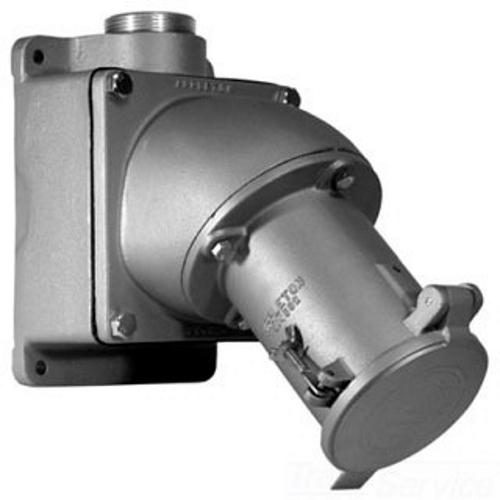

Appleton ADJA20034200 Pin and Sleeve Receptacle
Part Number # ADJA20034200
SKU # 2204992
$2027.41 / Each
Appleton ADJA20034200 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADJA20034200 |
| SKU #: | 2204992 |
| Amperage Rating: | 200, 200 A |
| Cord Diameter: | 1-7/8 to 2-1/2, 1-7/8 to 2-1/2 in |
| Dimensions: | 13-1/2 in H x 8 in W x 14-1/4 in D |
| Frequency Rating: | 50 to 400, 50 to 400 Hz |
| Horsepower: | 50, 50 hp |
| Hub Size: | 2, 2 in |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 4 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 225, -40 to 225 deg F |
| Terminal Type: | Pressure Wire, Pressure Wired |
| Type: | 3-Phase Grounding Style 2 |
| Country of origin: | MX |
| Material: | Copper Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381612616 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$2027.41 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Receptacle, 3-Phase Grounding Style 2, 600 V AC/250 V DC, 200 A, 50 hp, 50 to 400 Hz Frequency, 4 Pole, 3 Wires, NEMA 3/3R/4/4X NEMA Rating, 2 in Hub, 1-7/8 to 2-1/2 in Diameter Cord, -40 to 225 deg F, Pressure Wire Terminal, Copper Free Aluminum, 13-1/2 in H x 8 in W x 14-1/4 in D Dimensions
ADJA20034200 Application
AP20034E Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations and Similar Apparatus, Shipping Docks, Ports, Other Ship to Shore and Rough Usage Construction ApplicationsADJA20034200 Item Features
- Shell and extra pole grounding style 2
- Natural finish glass filled polyester insulating blocks
- 11/16 in dia wire recess
- Designed to supply power to portable or fixed electrical equipment
- Suitable for use in locations where a weatherproof enclosure is required
- Weatherproof spring door, raintight clamp cover
ADJA20034200 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2204992Part Number #ADJA20034200UNSPSC39121406UPC00781381612616
