Part Number # ADR6023
SKU # 2459632
ADR6023
Appleton ADR6023
Part Number # ADR6023
SKU # 2459632
$329.65 / Each
Typical price:$416.31 / Each
Appleton ADR6023 Key Features
| Brand: | Appleton |
|---|---|
| Part Number # : | ADR6023 |
| SKU #: | 2459632 |
| Amperage Rating: | 60 A |
| Frequency Rating: | 50/400 Hz |
| Horsepower: | 20 hp |
| NEMA Rating: | NEMA 3/3R/4/4X |
| Number of Poles: | 3 |
| Number of Wires: | 2 |
| Series: | ADR |
| Temperature Rating (Degrees F): | -40 to 225 deg F |
| Terminal Type: | Pressure Wire |
| Type: | 1-Phase Grounding Style 2 |
| Material: | Copper-Free Aluminum |
| Manufacturer Name: | Emerson Electric |
| UNSPSC: | 39121406 |
| UPC: | 00781381186391 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$329.65 / Each
Typical price:$416.31 / Each
Quantity:
- Appleton Powertite Pin and Sleeve Receptacle, 1-Phase Grounding Style 2, Series: ADR, 600 V AC/250 V DC, 60 A, 20 hp, 50/400 Hz Frequency, 3 Pole, 2 Wires, NEMA 3/3R/4/4X NEMA Rating, -40 to 225 deg F, Pressure Wire Terminal, Copper-Free Aluminum
ADR6023 Application
ACP6023BC Metallic Clamping Ring Plug, Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, Shipping Docks, Ports, Weatherproof Enclosure and Rough Usage Construction ApplicationsADR6023 Item Features
- Neoprene bushing compressed by cable collar prevents entrance of water, bushing is highly resistant to hydrocarbon deterioration and is self extinguishing
- Locking screw and slot prevents plug cable collar from "backing off"
- Contacts exert constant pressure along entire contact surface and provide electrical continuity
- Insulating blocks provide greatest dielectric and mechanical strength and lowest arc tracking
- Controlled length contacts ensure that ground makes first and breaks last for added safety
ADR6023 Standards
UL 1682, UL 1686, UL 50E; UL Listed: E145916, E145917; CSA Standard: C22.2 No. 182.1; CSA Certified: 065179; NEMA FB11SKU #2459632Part Number #ADR6023UNSPSC39121406UPC00781381186391

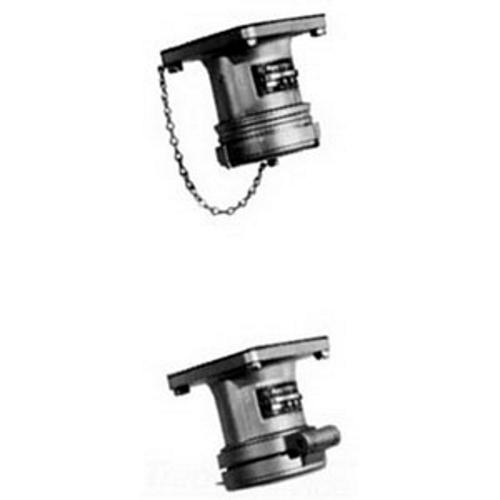

Image provided may only be a representation of final product and may include optional equipment
